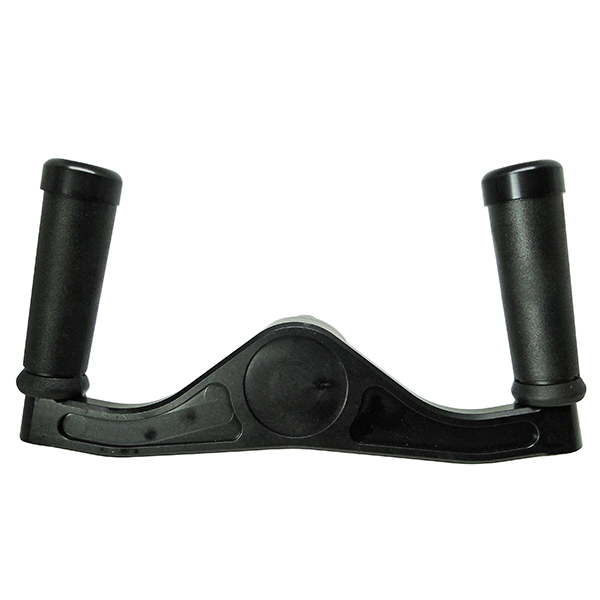

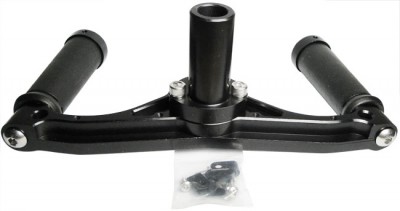

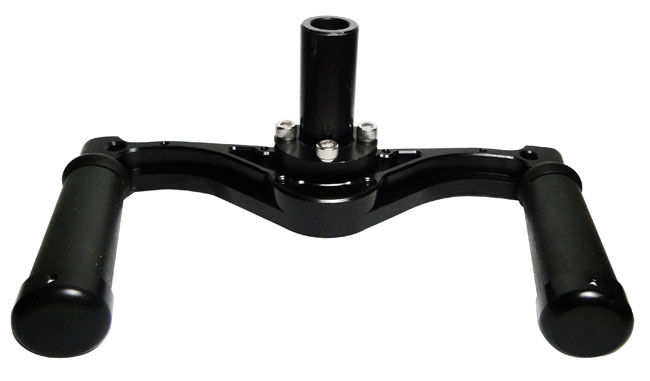

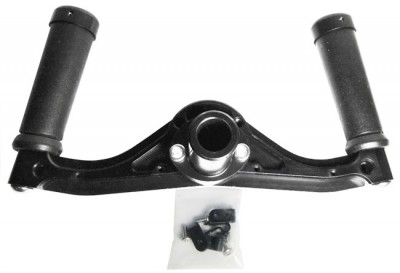

ACS Control Wheel A-1310 - Black Anodized

Select Size:
3/4-Inch7/8-Inch
Quantity
Add to Wishlist

Overview

Designed to be more user friendly than standard control wheels. Mounting position can be raised or lowered one inch by rotating the mounting flange. All parts machined from 6061-T6 billet. The A-1310 Control has cavities for wiring, but does not come prewired or with a mic switch. They can be ordered with a hole drilled for the mic or can be drilled later. Wt: 26 oz. Mounting flange hole sizes: 3/4" or 7/8".
Made in USA

Reviews

Just as advertised, very good quality.

Shawn G
May 22, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can these ACS Control Wheels, A-1310, be used in certified aircraft?

No, these are intended for use in experimental aircraft only.

Q: What is the overall height and width for the ACS Yoke Part # 05-02248?

The height is 143mm and the width is 288mm.

Q: Is the ram horn handle hollow inside? I want to drill the ptt hole and tap myself.

This is not necessarily hollow, but it does have machined cavities for wiring.

Q: Are the 3/4 and 7/8 indicated sizes the inside diameter of the hole in the adapter, or the outside diameter of the shaft? I have an application where I need the yoke adapter to slide into a 1 1/8 tube.

These dims are the ID of the mounting shaft.

Q: What size hole needs to be drilled and/or which PTT switch can be installed in this unit?

It will all depend on what switch you want to use. Part # 06-16300 is 3/4 Inch diameter also made by ACS.
