Baggage Door Locking Latch Flush Mount

Select Side:
LeftRight
Quantity
Add to Wishlist

Overview

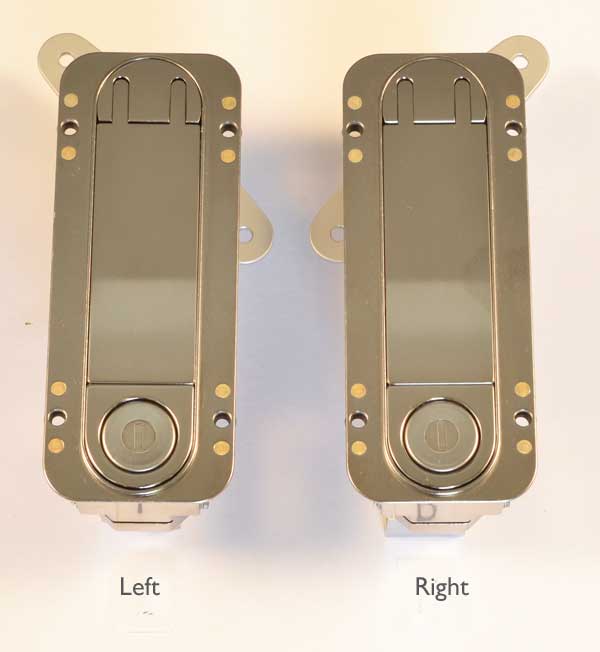

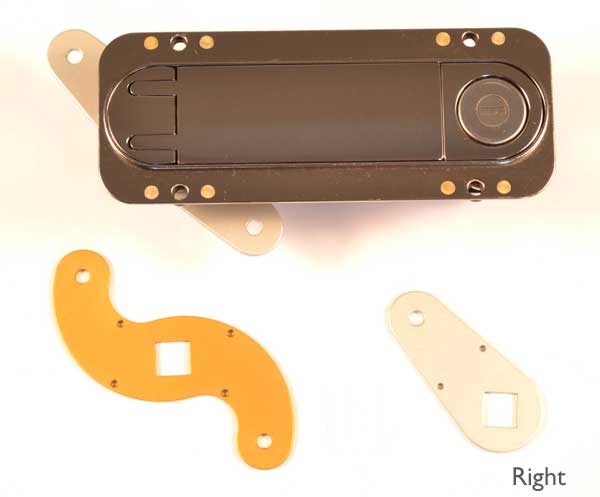

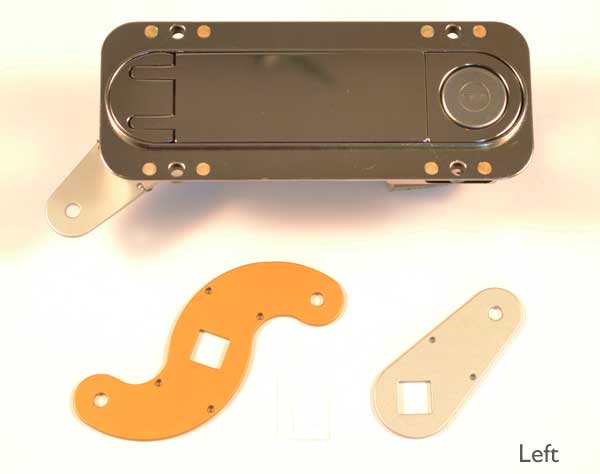

The locking latch has a 90° rotation handle that opens by pushing the key side of the base face. This deflection opens with the help of a spring and by rotating the handle you will pull locking pins out of the receptacles that are mounted to the inside skin of the Aircraft and outside of baggage door frame. Face opening dimension H 1 3/8” W 5.5” with radius at both ends and a .090 deep lip that will insure a flush mounting. Latch base has 4 10-32 anchor nuts for mounting to the door. The base is made of aluminum and nickel plated. Internal parts are nickel plated or stainless. Locks are weather resistant with 90° cam rotation. Keyed different 2 key pull and stainless shutter mechanism. Baggage door bases can be ordered left or right.
