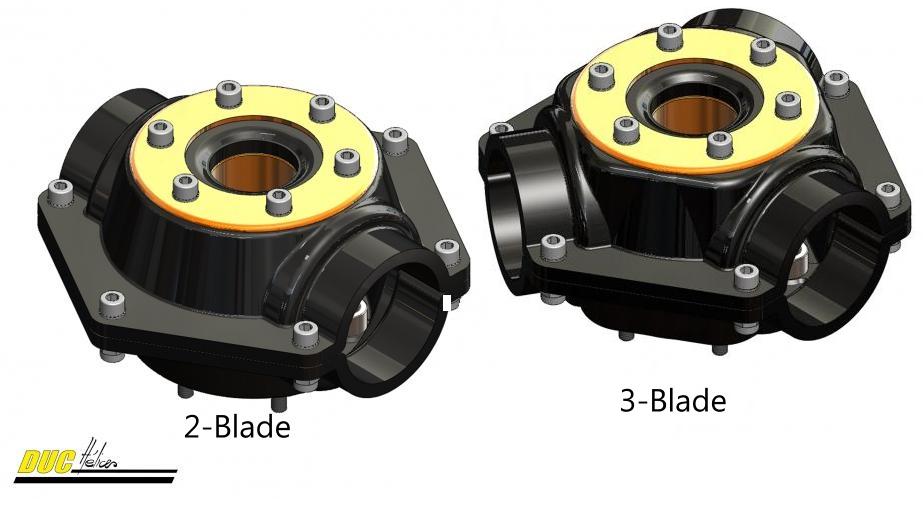

The Flash Hub for 2-Blade and 3-Blade Flash, Flash-R and Flash-2 Propellors. Rotax/Jabiru mounting

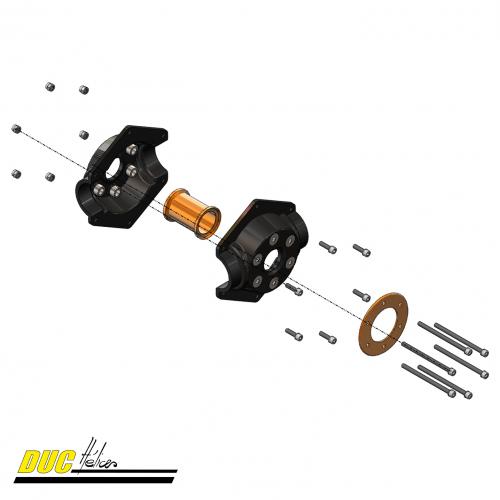

Propeller fixation: Screws CHC M8 (Screw length adapted according the mounting direct or with spacer) Hub clamping washer: Aluminum with holes Ø8mm on P.C.D. Ø101.6mm
SAE1: Screws AN6 (3/8") / SAE2: Screws AN8 (1/2") (Screw length adapted according the length of the spacer) Hub clamping washer: Aluminum SAE1: Holes for screws AN6 (3/8") on P.C.D. Ø4-3/8" (Ø111.125mm) SAE2: Holes for screws AN8 (1/2") on P.C.D. Ø4-3/4" (Ø120.65mm) |
