AN931 Grommet Assortment Kits

From $428.00 to $525.00
Description Part Number Price Buy
Elastic Grommet Assortment
04-01535
$428.00
Quantity
Elastic Grommet Assort With Cabinet
04-01534
$525.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

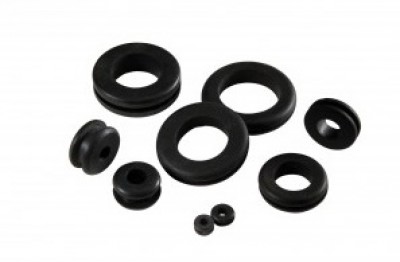

Flexible grommets, made of black synthetic rubber to specification
MIL-G-3036. Resistant to hot oil & coolant. Used to protect tubing, wiring and control cables where they pass through bulkheads and firewalls.

23 different sizes (270 pieces) in each kit.

Reference Chart

PNMS35489IDODHole SizeThicknessQuantity
AN931-2-9 -2 1/8 3/4 9/16 3/16 15
AN931-2-16 -3 1/8 1-1/4 1 1/4 5
AN931-3-5 -4 3/16 7/16 5/16 3/16 20
AN931-3-9 -134 3/16 3/4 9/16 3/16 15
AN931-4-7 -6 1/4 5/8 7/16 3/16 20
AN931-4-12 -7 1/4 1 3/4 1/4 20
AN931-4-16 -8 1/4 1-1/4 1 1/4 5
AN931-5-9 -9 5/16 13/16 9/16 5/16 20
AN931-5-12 -10 5/16 1 3/4 5/16 15
AN931-6-10 -11 3/8 7/8 5/8 5/16 20
AN931-6-16 -12 3/8 1-1/4 1 1/4 20
AN931-7-11 -13 7/16 15/16 11/16 5/16 10
AN931-8-13 -14 1/2 1-1/16 13/16 5/16 20
AN931-8-20 -15 1/2 1-1/2 1-1/4 1/4 10
AN931-9-13 -16 9/16 1-1/16 13/16 5/16 5
AN931-10-14 -17 5/8 1-1/8 7/8 5/16 15
AN931-10-20 -18 5/8 1-1/2 1-1/4 1/4 5
AN931-11-16 -19 11/16 1-5/16 1 3/8 5
AN931-12-17 -20 3/4 1-3/8 1-1/16 3/8 10
AN931-12-20 -135 3/4 1-5/8 1-1/4 1/4 5
AN931-12-23 -21 3/4 1-13/16 1-7/16 3/8 5
AN931-14-20 -22 7/8 1-5/8 1-1/4 7/16 5
AN931-16-22 -23 1 1-3/4 1-3/8 7/16 5

Reviews

This is a great kit to have. The original complete kit comes with a greater number of more common grommets which works out well. There was not a size we needed which was not present in the original kit. Replacements are easily ordered by the individual part number.

Norris W Verified Purchase

Elastic Grommet Assort With Cabinet

August 10, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the deference between Elastic grommet assortment part# 04-01535 an elastic grommet assort part# 04-01534?

The only difference is the cabinet. Part number 04-01534 includes a cabinet for storage and part number 04-01535 is only the grommet assortment.

Q: What kind of cabinet does the assortment W/CBNT come with?

The "with cabinet" version includes cabinet part # 04-01465.

Q: Does the assortment set option w/o CBNT come with an organizer?

No, the 04-01535 kit does not come with an organizer.
