Clip Size | Min Dia. (in.) | Max Dia. (in.) | Part Number | Price | Buy |
---|---|---|---|---|---|
A | .22 | .26 | 05-02698 | $0.53 | |
AA | .26 | .31 | 05-02699 | $0.65 | |
B | .31 | .36 | 05-02701 | $0.63 | |
C | .40 | .47 | 05-02702 | $0.56 | |
CC | .44 | .51 | 05-02695 | $0.59 | |
D | .47 | .54 | 05-02703 | $0.59 | |
E | .52 | .59 | 05-02704 | $0.66 | |
F | .59 | .67 | 05-02705 | $0.82 | |
G | .67 | .75 | 05-02706 | $0.65 | |
H | .71 | .81 | 05-02696 | $0.81 | |
J | .80 | .91 | 05-02707 | $0.68 | |
K | .87 | .98 | 05-02708 | $0.84 |

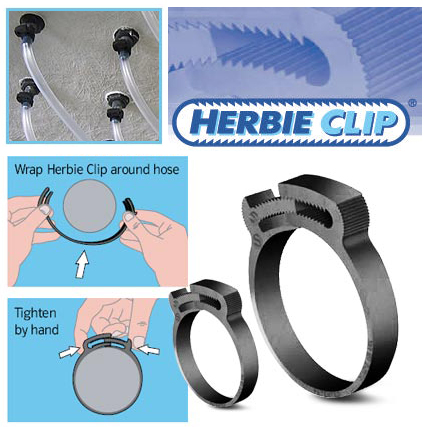

The Herbie Clip hose clamp The Herbie Clip hose clamp is the original double toothed (double row of teeth) ratchet clamp. This makes the Herbie clip twice as strong (up to 200psi depending on hose work and spigot) as similar hose clamps with a single row of teeth. The Herbie Clip hose clamp combines its high strength with other key features such as: non-corrosive and resistant to many chemicals, simple to install can be fitted before or after the hose is in place, minimum leak path, lightweight, easy to use (no sharp edges to cut the operators), fully compliant with ROHS, UL listed (nylon 6.6.) Features:
|
Haven’t had a chance to use yet but arrived in good condition and look like they will be what I need.
Snapper Clip .22Mid .26Mod
Haven’t had a chance to use yet but arrived in good condition and look like they will be what I need.
Plastic Hose Clamp - Herbie Clip - 0.25 - 0.34Inch - Black- PA66
Seems to have gone on well. Applied two rotated 180 apart. Hoping to pass the IFR pitot/static check next time around.
Plastic Hose Clamp - Herbie Clip - 0.32 - 0.36Inch - Black - PA66
works great
Snapper Clip .22Mid .26Mod
works great
Snapper Clip .40Mid .46Mod
works great
Plastic Hose Clamp - Herbie Clip - 0.32 - 0.36Inch - Black - PA66
The Herbie clips are a snap to use and of good quality.
Plastic Hose Clamp - Herbie Clip - 0.82 - 0.93Inch - Black - PA66
Exactly as described, eliminated lots of sharp ends of original metal spring clamps
Worked just fine
Dont have to deal with rusted metal clamps or clamps that cut into hose.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
We would need to know the OD of the hose. Then, once you have the OD you can use the reference chart to find the size clip whose range contains the OD.
You would want our part number 05-00940.
