- Photo may represent series and not specific product
- SHARE

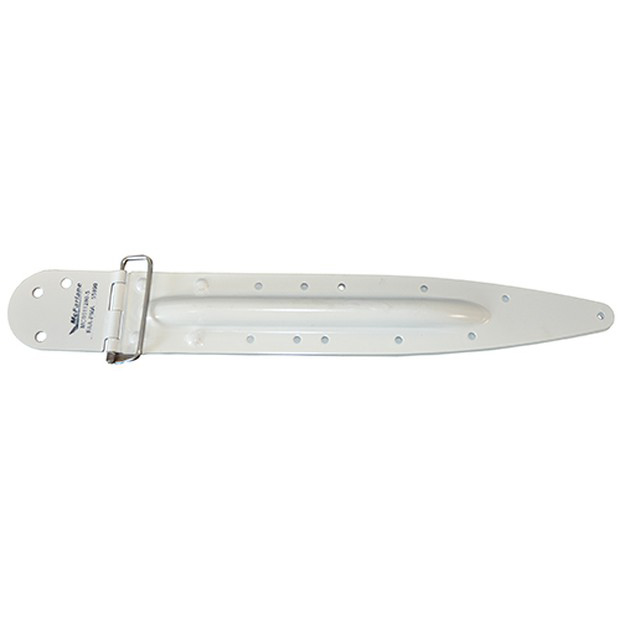

Cabin Door Hinge Assembly for Cessna Aircraft
$1124.00/Each
Part# 05-27278
MFR Model# MC0511280-5
MFR Model# MC0511280-5
Overview
| Replacement FAA-PMA cabin door hinge assembly for Cessna 170 / 172 / 175 aircraft. Note: Cessna legacy airplanes, built prior to 1979, feature a door post skin that angles inward (toward the front edge of the door). Aircraft with this bend require a hinge with a 5° bend for correct installation. Later models and new production aircraft do not have this inward angle and use a straight hinge. |
Features
- FAA-PMA approved welded design
- Thicker alloy steel
- Heat-treated for extra strength and wear resistance
- Precision pin holes for longer life
- Pre-drilled and epoxy primed
Supersedures
- 0511280-1
- 0511280-5
Eligibility
| Make | Series | Model | Beginning S/N | Ending S/N | Quantity Per Aircraft | Location |
|---|---|---|---|---|---|---|
| Cessna | 170 | 170B | 26996 | 27169 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172 | 28000 | 46754 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172A | 46755 | 47746 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172B | 17247747 | 17248734 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172C | 17248735 | 17249544 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172D | 17249545 | 17250572 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172E | 17250573 | 17251822 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172F (T-41A) | 17251823 | 17253392 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172G | 17253393 | 17254892 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172H (T-41A) | 17254893 | 17256512 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172I | 17256513 | 17257161 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172K | 17257162 | 17259223 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172L | 17259224 | 17260758 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172M | 17260759 | 17263458 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172M | 17263459 | 17267584 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172N | 17267585 | 17274009 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172P | 17274010 | 17276654 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172Q | 17275869 | 17276211 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172R | 17280001 | 17299999 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172RG | 172RG0001 | 172RG1191 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | 172S | 172S8001 | 172S99999 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | F172D | F172-0001 | F172-0018 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | F172E | F172-0019 | F172-0085 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | F172F | F172-0086 | F172-0179 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | F172G | F172-0180 | F172-0319 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | F172H | F17200655 | F17200754 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | F172H | F172-0320 | F172-0654 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | F172K | F17200755 | F17200804 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | F172L | F17200805 | F17200904 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | F172M | F17200905 | F17201234 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | F172M | F17201235 | F17201514 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | F172N | F17201515 | F17202039 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | F172P | F17202040 | F17202254 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | FR172E | FR17200001 | FR17200060 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | FR172F | FR17200061 | FR17200145 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | FR172G | FR17200146 | FR17200225 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | FR172H | FR17200226 | FR17200350 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | FR172J | FR17200351 | FR17200590 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | FR172K | FR17200591 | FR17200675 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | P172D | P17257120 | P17257188 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 172 | R172K | R1722000 | R1723454 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 175 | 175 | 55001 | 56238 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 175 | 175A | 56239 | 56777 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 175 | 175B | 17556778 | 17557002 | 1 | Door Hinge Assembly - Upper Left |
| Cessna | 175 | 175C | 17557003 | 17557119 | 1 | Door Hinge Assembly - Upper Left |
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
