- Photo may represent series and not specific product
- SHARE
| Part Number | Tube OD | Hose OD | Hose ID | Max PSI | Mini Blend | Price | Buy |
|---|---|---|---|---|---|---|---|
156-3 | .188 | .376 | .156 | 1500 | 1.75 | $35.50 | |
156-4 | .250 | .440 | .219 | 1500 | 2.00 | $42.55 | |
156-5 | .312 | .486 | .281 | 1500 | 2.25 | $39.50 | |
156-6 | .375 | .549 | .344 | 1500 | 2.50 | $45.50 | |
156-8 | .500 | .651 | .438 | 1250 | 3.50 | $54.75 | |
156-10 | .625 | .797 | .562 | 1250 | 4.00 | $55.90 | |
156-12 | .750 | .938 | .688 | 1250 | 4.50 | $57.75 | |
156-16 | 1.000 | 1.156 | .875 | 1000 | 5.50 | $66.75 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview

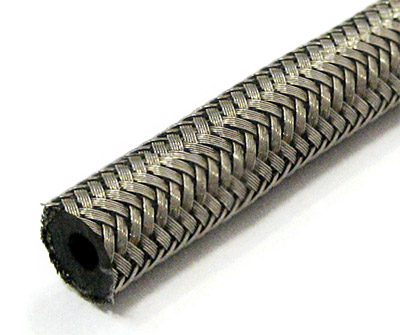

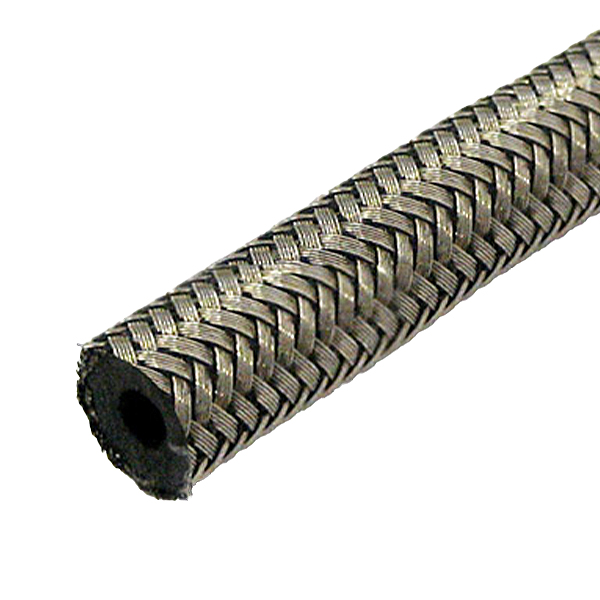

| Stratoflex 156 Hose. Sold by the foot. |
Reviews
The same as EATON AEROQUIP 601-8/AE701 HOSE Fitting could be used on both hoses
Verified Purchase
Stratoflex 156-6 Hose
Stratoflex 156 hose is a bit different than Aeroquip 601 hose in that Stratoflex fittings for the hose use an additional separate ferrule and have an O-ring. Oddly when I contacted Stratoflex tech support to ask for a fitting installation process they dont publish one for liability reasons as opposed to Aeroquip whose process is in the Aircraft Spruce catalog! All Stratoflex would tell me is to go to AC43.13 but that only shows the Aeroquip 601 kind of hose fitting configuration. Bottom line is I winged it installing the Stratoflex fittings trying to follow the 601 process and it seemed to work but havent pressure tested it yet...
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The Aeroquip 601 and Stratoflex 156 are equivalent to each other, but we can only recommend to use like manufacturer fittings and hose when making an assembly.
