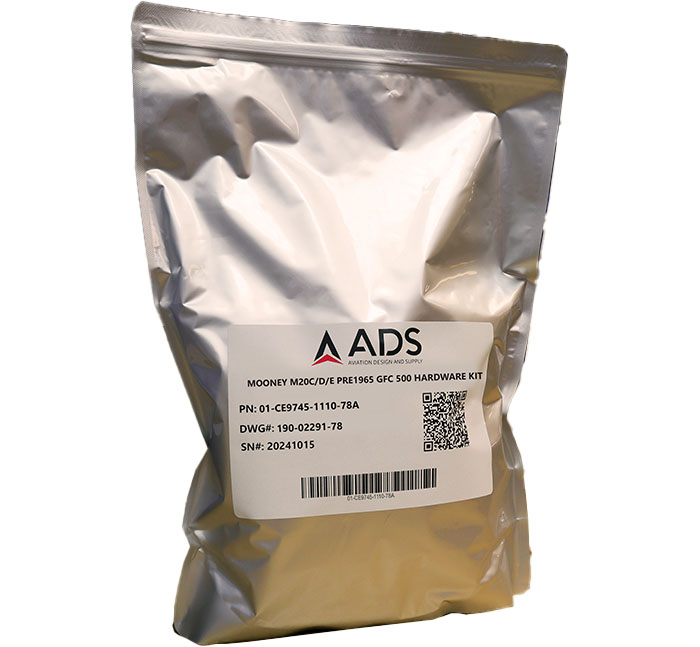

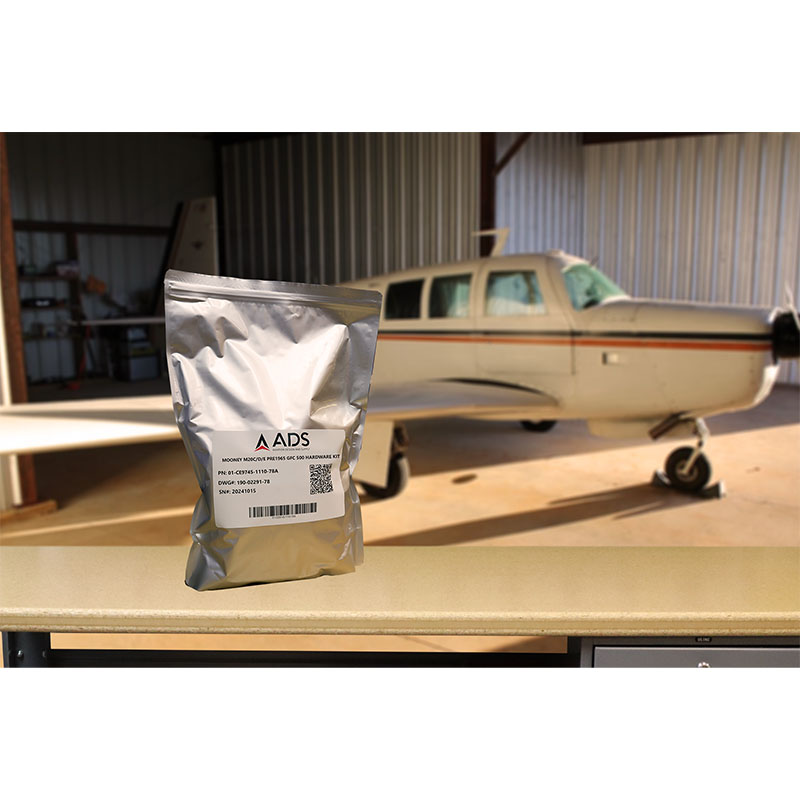

ADS GFC 500 Installation Hardware Kit - Mooney M20C / M20D / M20E / M20F / M20G

$765.00/Each
Quantity
Add to Wishlist
Part# 11-20479
MFR Model# 01-CE9345-1110-63A

Overview

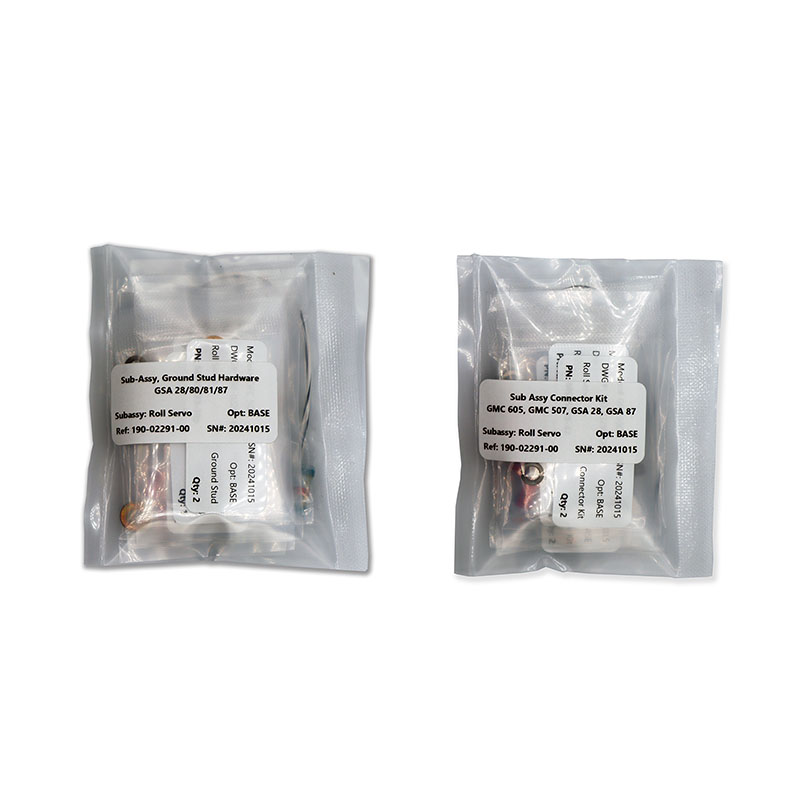

This kit includes all the “Best Source” hardware listed in the Garmin® installation addendum including the connector and ground stud hardware for the control head and each servo listed in the Garmin® installation manual. This will save valuable billable time and allow you to do more! For years 1965 and on.

Specifications

  • Weight: 4 lbs
  • Dimensions: 10 × 10 × 10 in
  • Compatible Aircraft Make: Mooney
  • Compatible Aircraft Model: M20C / M20D / M20E / M20F / M20G
  • Compatible Years: 1965 AND ON
  • Compatible Autopilot: GFC 500
  • Reference: 190-02291-63
  • Not Included In Kit: MS3367-2-9, SWP-3/38BK

In The Box

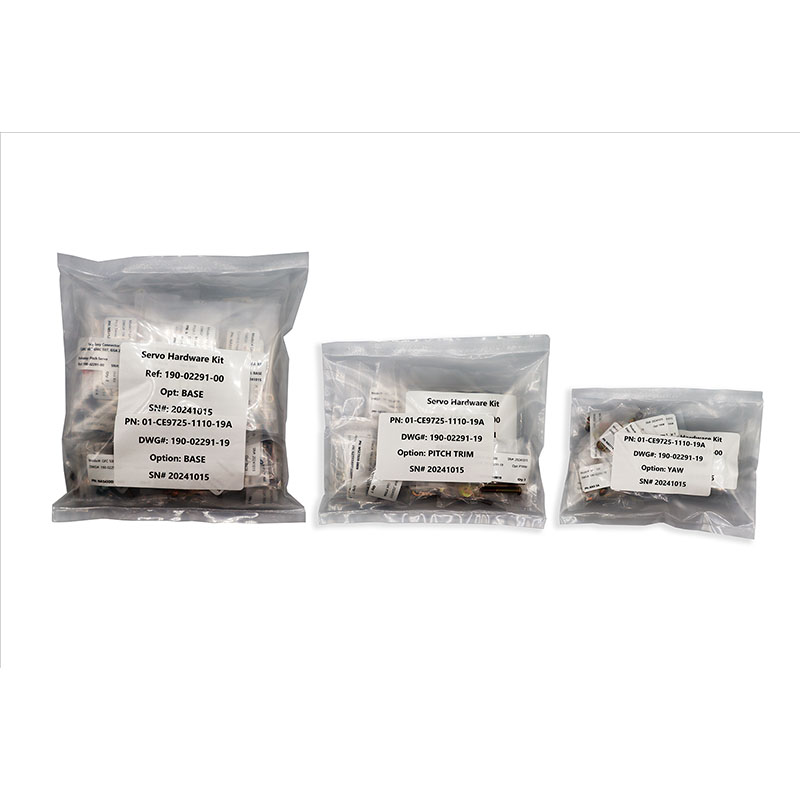

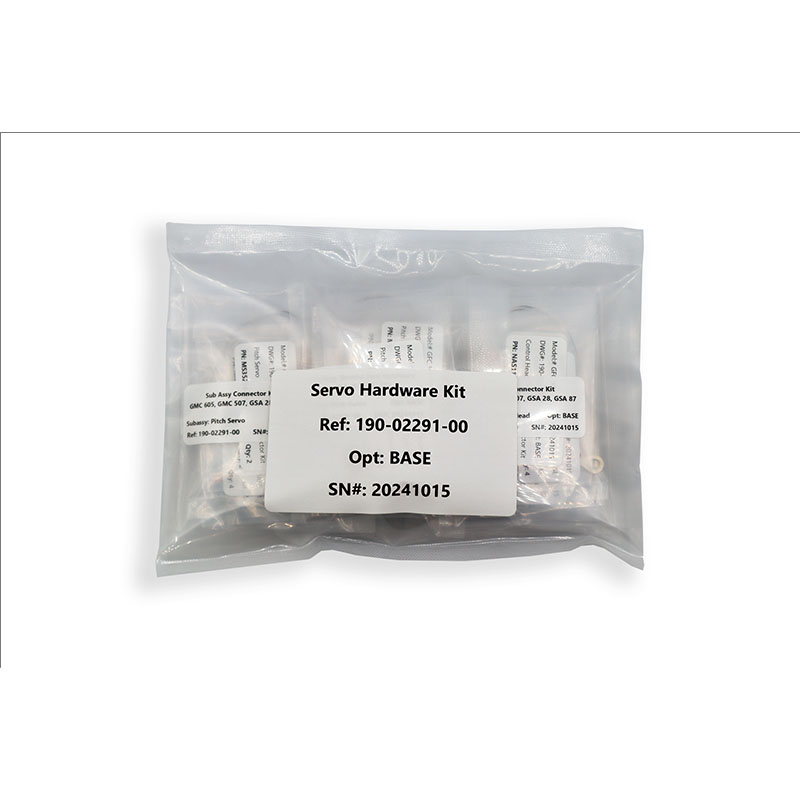

  • Hardware for Base, Pitch Trim, and Yaw Options
  • Hardware for Pitch, Roll, and Pitch Trim Servos Including Environmental Solder Sleeves.
  • All Available Material Certs (Upon Request)
  • Aviation Design and Supply Certificate of Conformance

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this kit include brackets and plates?

No, the plates and brackets are not included. This kit includes the required hardware for install.
