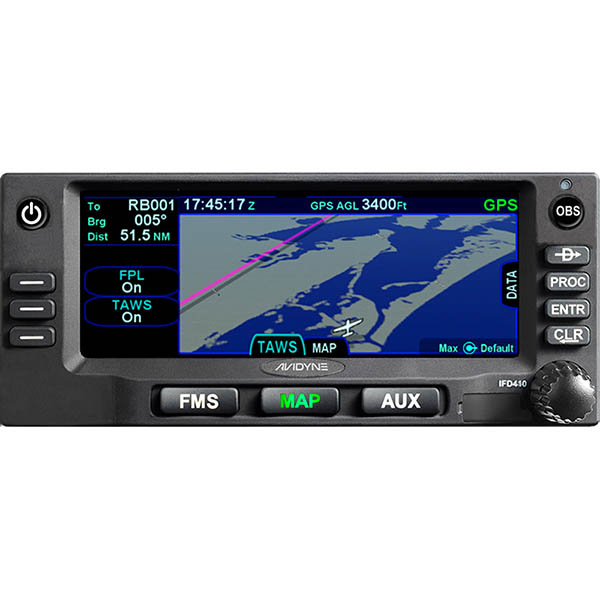

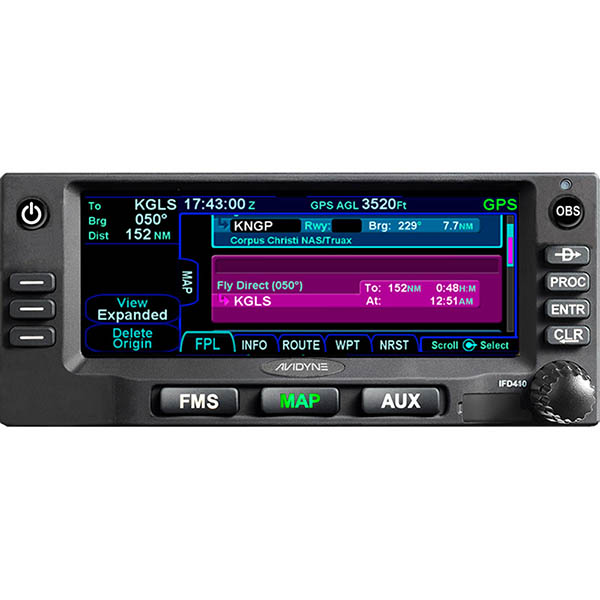

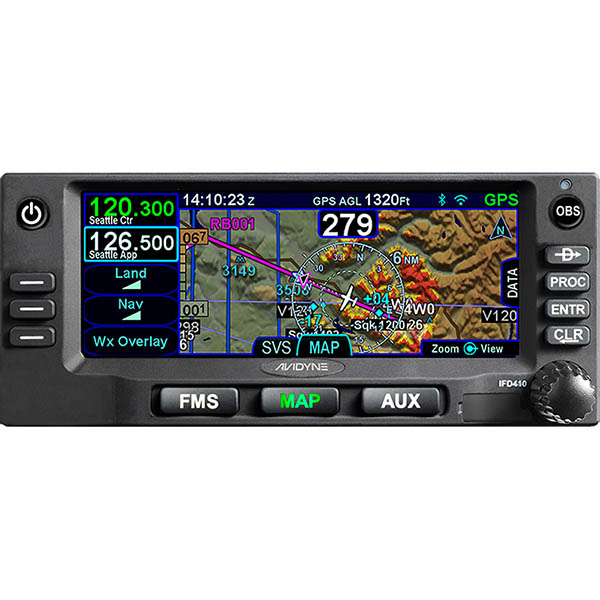

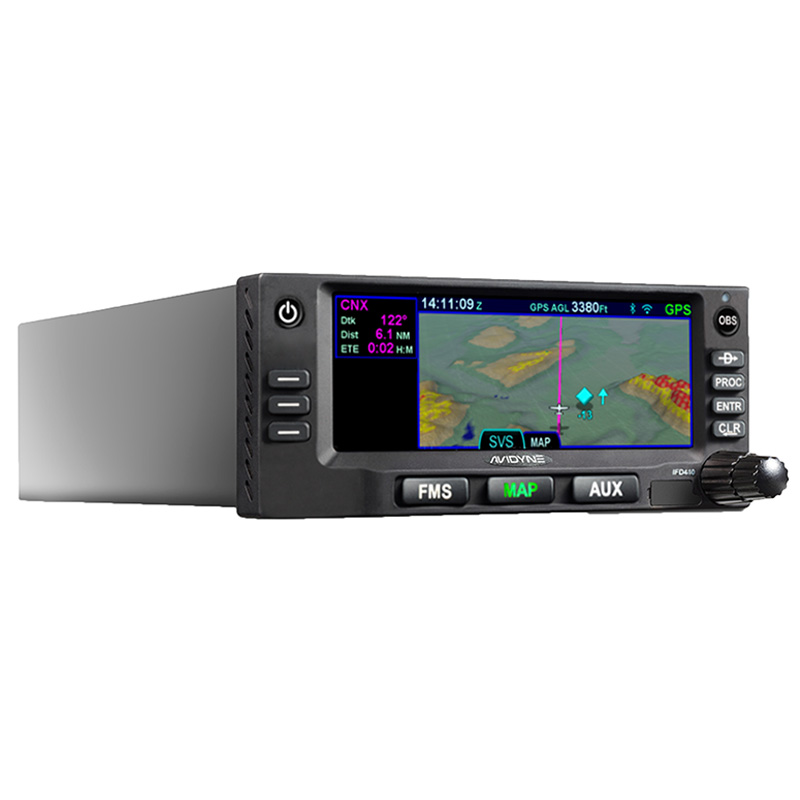

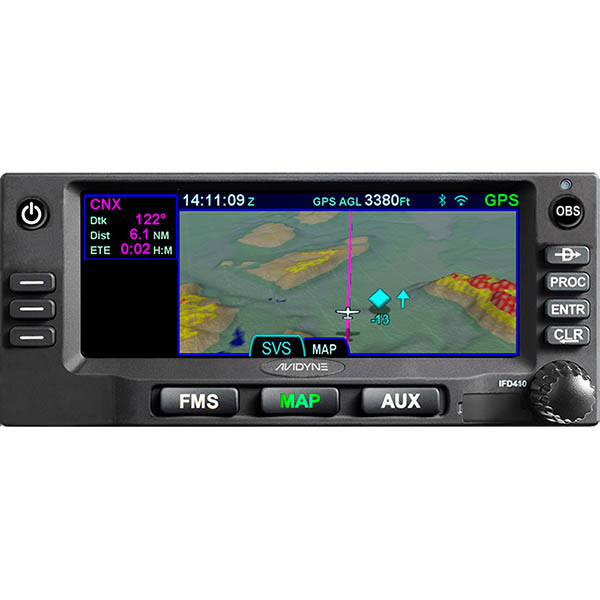

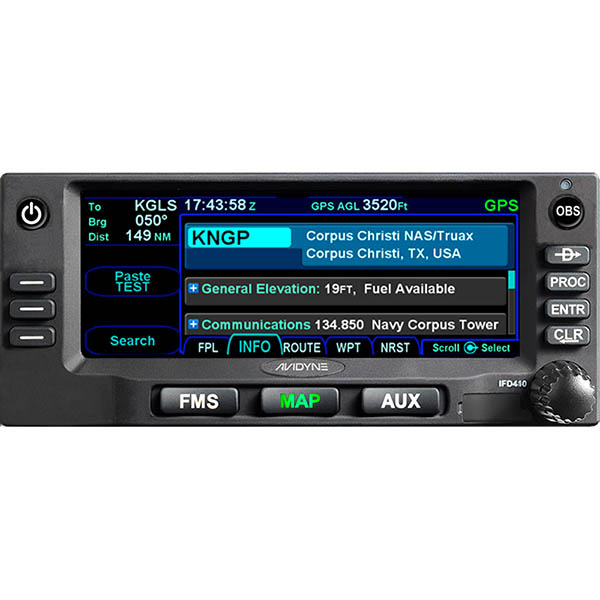

Avidyne IFD410 SBAS / LPV FMS Navigator
Overview
| Compact and powerful, the IFD410 FMS/GPS Navigator is an excellent choice for general aviation aircraft and helicopters looking to upgrade to modern SBAS/LPV capability. This next-generation panel-mounted navigator also flight planning and in-flight changes easy with its Hybrid Touch user interface and integrated WiFi and Bluetoothฎ that work seamlessly with your iPad and the included MK10 BT Keyboard respectively. Youll have big glass capabilities for a fraction of the cost. |
Features
- Full SBAS/LPV FMS/GPS Capabilities
- 3D exo-centric Synthetic Vision
- Hybrid touch user interface
- FMS Preview flight plan loading with real-time graphical depictions
- Seamless integration to Avidynes IFD 100 iPad app
Specifications
- 4.8 Diagonal w/Touch Screen
- Full VGA - 640 x 480 pixels
- 65,535 colors
- Ultrabright sunlight readable w/LED Backlighting
- Width: 6.30 (16.0cm)
- Height: 2.66 (11.7cm)
- Depth: 11.00(27.5cm) behind panel including connector
- IFD410 - 5.16 lb (2.34 kg)
Series Comparison
| IFD 550 | IFD 545 | IFD 540 | IFD 510 | IFD 440 | IFD 410 | |
|---|---|---|---|---|---|---|
| FMS/GPS | | | | | | |
| VHF NAV | | | | |||
| VHF COM | | | | |||
| 3D SVS | | | | | | |
| ARS + DYNAMIC SVS | | | ||||
| WiFi/BT/FLTA | | | | | | |
| Radar | Optional | Optional | Optional | Optional | From 5-series | From 5-series |
| Video | Optional | Optional | Optional | Optional | N/A | N./A |
Compatibility
Satellite Datalink Weather Interface
- Avidyne MLB700/WSI AV-300 Broadcast Datalink Receiver
- GDL69/A XM Broadcast Datalink using Baron Wx Services and XM® Satellite Receiver
Electronic Approach Charts & Airport Diagrams (IFD5XX Only)
- CMax™ Jeppesen Electronic Airway Manual Charts (IFD540 only)
- European VFR (Bottlang) Charts - optional
Charts, Nav Data, and other software updates are easily field loadable via USB port.
Lightning Interface
- Avidyne TWX670 Tactical Lightning Detection
- L3 WX-500 Stormscope® Weather Mapping Sensor
Wx Radar Systems
- Bendix/King RDR2000
Traffic Interface
- Avidyne SkyTrax600/605/610/615/620/A TAS/AXP322 TIS
- Ryan 9900B/BX TAS
- Honeywell KTA870/KMH880 TAS/IHAS/CAS66A TCAS I
- L3 Skywatch 497 / HP TAS/ 791 TCAS I
- Garmin GTS800/820 TAS/GTS850 TCAS I/ GTX330 TIS
ADS-B Interface
- Avidyne SkyTrax605A/SkyTrax615A/ SkyTrax620A (Traffic)
- Avidyne SkyTrax100B
- Avidyne AXP340, AXP322
- L3 NGT-9000
- FreeFlight RANGR
- Garmin GTX330ES, GTX335, GTX345
Terrain Awareness
- Color-Contoured Terrain Base Map Built in
- Americas Terrain & US Obstacle Data
- International Terrain Data (optional)
406 ELT Interface
- Aviation RS-232
- NMEA 0183
Applicable TSOs
- TSO-C34e, TSO-C36e, TSO-C40c, TSO-C44c, TSO-C110a, TSO-C112e, TSO-C113a, TSO-C118, TSO-C128a, TSO-C146d, TSO-C147, TSO-C157a, TSO-C165, TSO-C169a
EFIS
- Garmin G5
- Garmin GI-275
