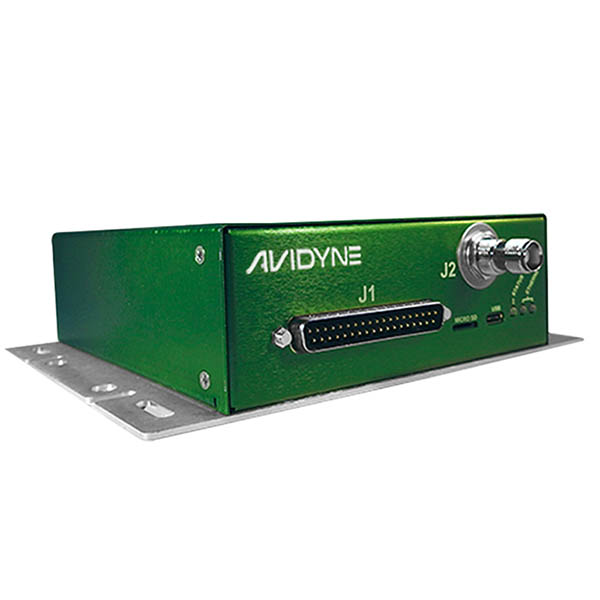

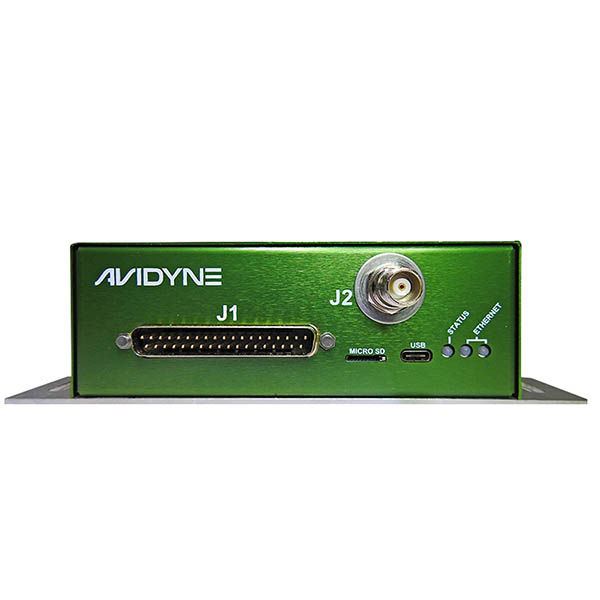

Avidyne Skytrax 200 Dual-Band ADS-B Receiver With Connector Kit

0 Reviews 0 Answered Questions
$3818.00/Each
Quantity
Add to Wishlist
Part# 11-19587
MFR Model# 850-00228-100

Overview

SkyTrax200 includes dual-band (1090MHz and 978 MHz) ADS-B and is also capable of receiving the traffic output from active traffic systems such as the Avidyne SkyTrax600, TAS600 series, Ryan 9900BX, or a legacy SkywatchTM system and combines it with other incoming data presenting you with an integrated view of dual-band ADS-B, TAS, and ATC radar traffic.

The Avidyne SkyTrax200’s weather and dual-band traffic can be displayed on Avidyne’s IFD-Series GPS/NAV/COMs, Multi-Function displays (MFD) or Entegra R9 integrated flight deck systems and supports standard Capstone and Arinc 429/735 interfaces.

Features

  • Dual-band ADS-B receivers provide direct line-of-sight reception of ADS-B Traffic targets.
  • Receiving Flight Information System Broadcast (FIS-B) weather via 978MHz in US airspace*.
  • Full ADS-B surveillance capability to meet the upcoming mandates for flight above and below FL180
  • Receives non-ADS-B (Transponder-equipped) traffic via TIS-B (U.S. Airspace)

Specifications

  • Receive only
  • For IFD540/440 customers with AXP340 Mode S Transponder (1090MHz ADS-B Out) > 18,000ft
  • Width: 7.28” (185mm) - Including mounting bracket
  • Height: 2.04” (52mm)
  • Depth: 6.20” (158mm
  • 1.40 lbs (0.64 kg) - excluding cables
  • 978MHz TSO Rule Compliant ADS-B IN
  • TSO-C154c, RTCA/DO-282B
  • Voltage: 9-33VDC
  • Input Current (8W nominal): 0.6A @ 14VDC, 0.41A @ 28VDC
  • -20 to +55 C
