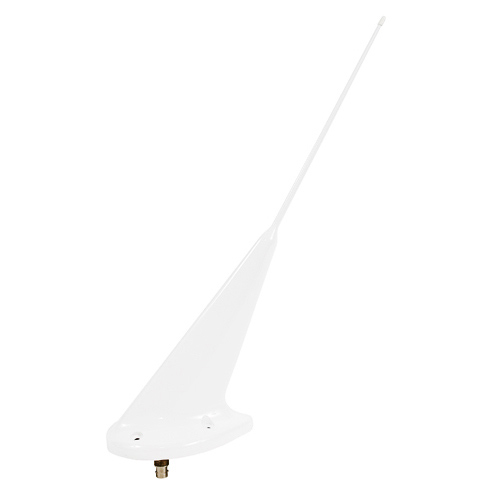

DM C70-6 VHF Comm Broadband Antenna

$5774.00/Each
Quantity
Add to Wishlist
Part# 11-15523
MFR Model# C70-6

Overview

The C70 Series VHF Communication Antennas are designed to be installed on the top or bottom on high-performance, single, twin and turbo engine fixed and rotary wing aircraft. These uniquely designed antennas offer mechanical strength and high electrical efficiency to provide maximum reliability and full 360/720 channel transceiver operation. Its lightweight profile is unobtrusive, resists icing, and has low drag.

This variant of the C70 series VHF communication antenna (DM C70-6) has a VSWR of 2.5:1, rated for speeds of 400 mph, also has a different mounting hole pattern and connector location than the C70-1/A.

Specifications

  • Weight: 12 oz (0.34 kg)
  • Connector: BNC female
  • Finish: white polyurethane
  • Frequency Range: 118 - 137 MHz
  • VSWR: C70, -1/A, -3, -9: 2.0:1 / C70-4, -6: 2.5:1
  • Impedance: 50Ω
  • Polarization: vertical
  • Radiation Patterns: Omnidirectional in Azimuth
  • Power Handling: 50 watt
  • TSO C37d, C38d - DO160c ENV CAT F2-ABCXWFDXSXXXXXXXXXX
  • Speed Rating: C70-1/A, -4, -6, -9: 400 MPH / C70-3: 250 MPH

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the height of this DM C70-6 antenna?

Per the specifications of this antenna the height is 15 inches.
