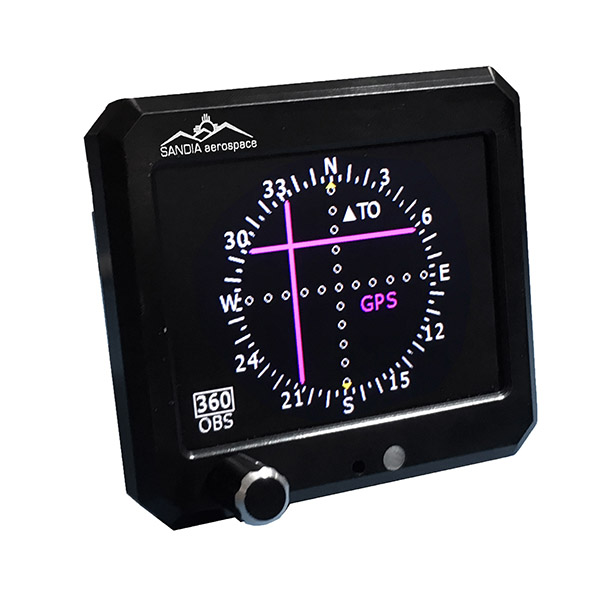

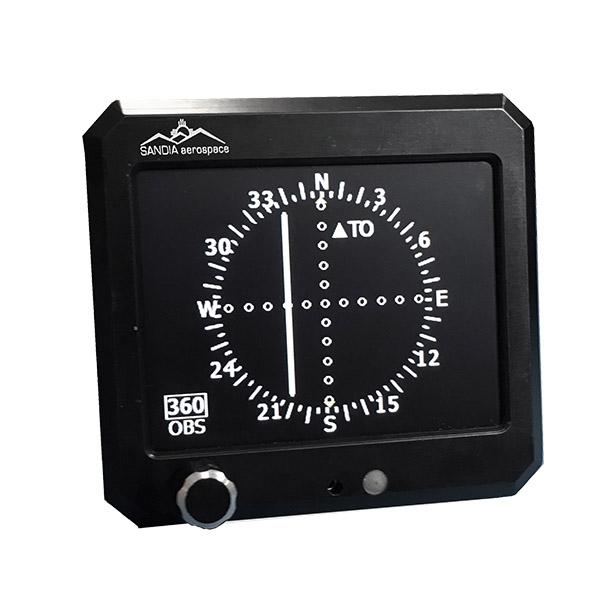

Sandia Si-11X Electronic Course Deviation Indicator
MFR Model# 705020-00
Overview
|
The SI-11X Electronic Course Deviation Indicator is a panel-mounted device that displays lateral and vertical needles from a typical navigation receiver or GPS navigator. The non-certified SI-11X CDI is intended for the experimental aircraft market. All information is displayed on a color 3.5 Inch diagonal LCD display in traditional aerospace symbology. The SI-11X displays Left/Right course deviation for VOR, ILS or GPS and Vertical deviation for ILS or GPS. The SI-11X also displays four Annunciations, NAV or VLOC, GPS and BC (Back Course). The SI-11X will interface with virtually all VOR and GPS navigation units. The SI-11X mounts in a 3 1/8 Inch standard instrument hole and is the ideal replacement for mechanical instruments. |
Features
- 3.5in color LCD display
- All Solid State, no mechanical needles or flags
- Displays both VOR/LOC and GPS deviations
- Annunciates GPS, VLOC & BC
- Annunciations NAV or VLOC, GPS and BC (Back Course)
- Ideal replacement for most mechanical CDIfs including the GI-106A
- Interface with virtually all VOR and GPS navigation units
- Upgradable
- High visibility
- Small and light weight, just 1 behind the panel
- Fits standard 3-1/8 round mounting hole
Specifications
- Weight: 0.56 lb
- Dimensions: 3.52 x 3.22 x 1.84 in.
- Viewing angle: 60‹ Left/Right, 45‹ Up/Down
- Operating temperature: -20‹C to +55‹C
- Power input: 10-32 VDC
- Current: 1 amp max
- Power: 5 watts at max display brightness
Documents
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the installation manual it does not require an adapter to connect to a GPS.
Per the manufacturer, The SI-11X will interface with virtually all VOR and GPS navigation units.
