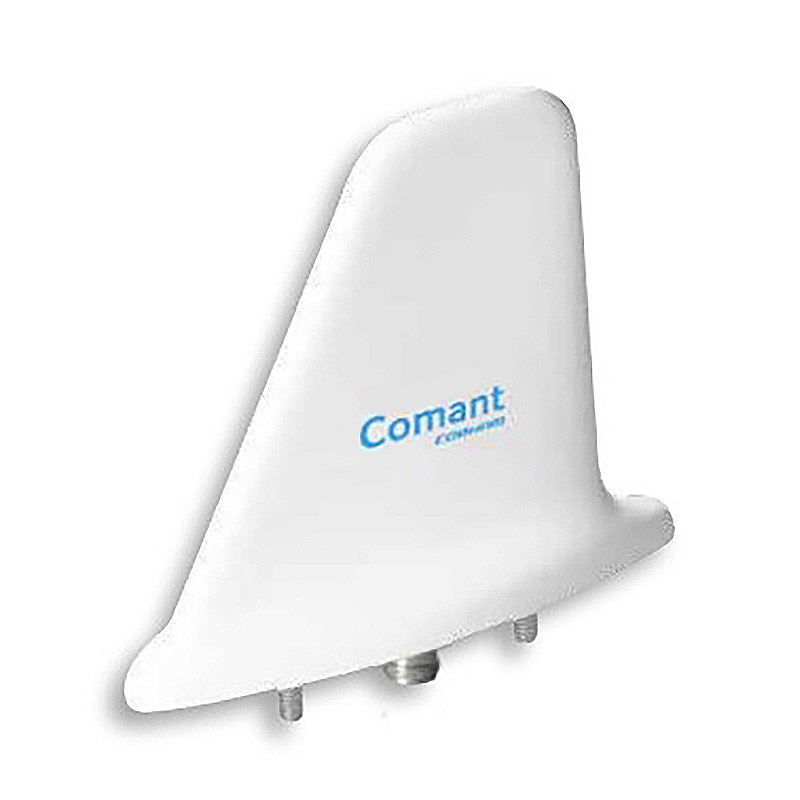

Comant CI-105-11 Transponder / ADS-B / DME Blade

$401.00/Each
Quantity
Add to Wishlist
Part# 11-19385
MFR Model# CI-105-11

Overview

Comant’s two internal hole stud mount blade style transponder antenna with TNC port. Frequency range supports ADS-B Out and DME applications. Suitable for either top or bottom mounting with light fixed wing single engine / multi-engine and helicopter aircraft

Specifications

  • Electrical
  • Frequency: 960-1220 MHz
  • VSWR
  • 1.5:1 Max 960-1220 MHz
  • 1.3:1 Max 1025-1150 MHz
  • Polarization: Vertical
  • Radiation Pattern: Equivalent to a 1/4 wave stub
  • Impedance: RF 50 Ohms
  • Resistance: DC Open Circuit
  • Power RF: 2.5 KW Peak

  • Mechanical
  • Weight: 0.24 lb
  • Height: 3.23 in
  • Finish: Glossy White
  • Connector: TNC (female)
  • Environmental
  • Temperature: -55 C to +85 C
  • Altitude: 70,000 ft.

  • Federal Specifications
  • FAA TSO: C66b, C74c
  • RTCA Environmental: DO-160C
  • Gasket: B10505

Applications

  • Light Fixed Wing Single Engine
  • Light Fixed Wing Multi-Engine
  • Helicopter
  • Always consult your installation shop for best application.
