Comant VHF Antenna CI-109

$568.00/Each
Quantity
Add to Wishlist
Part# 11-19387
MFR Model# CI-109

Overview

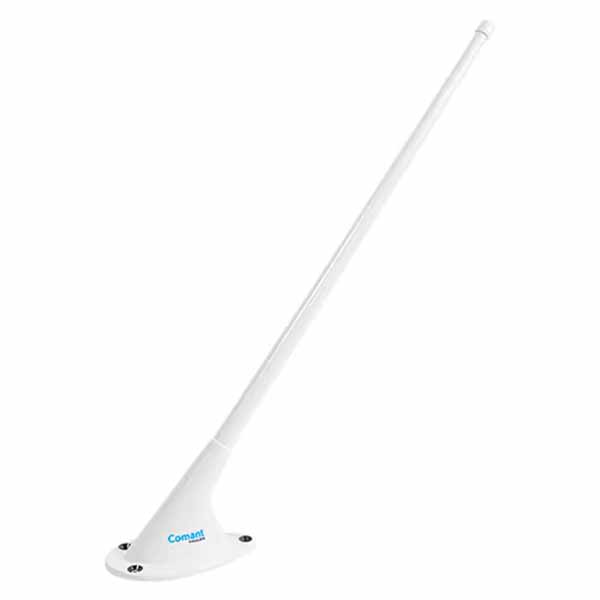

Comant’s four through hole mount whip style VHF communication antenna with BNC port. Equivalent to the CI 121 except features a larger diameter whip and weighs slightly more. Suitable for top mounting with light fixed wing single engine / multi-engine and helicopter aircraft.

Specifications

  • Electrical
  • Frequency: 118-137 MHz
  • VSWR: 2.5:1 Max
  • Polarization: Vertical
  • Radiation Pattern: Omnidirectional
  • Impedance: RF 50 Ohms
  • Power RF: 50 Watts

  • Mechanical
  • Weight: 0.6 lb
  • Height: 19.25 in
  • Material: Cast housing / Fiberglass whip
  • Finish: Glossy White
  • Connector: BNC (female)

  • Environmental
  • Temperature: -55 to +85 Celsius
  • Altitude: 50,000 ft.

  • Federal Specifications
  • FAA TSO: C37d, C38d
  • RTCA Environmental: DO-160D
  • Gasket : B12607-3 Cork Neoprene - Standard

Documents

  • Light Fixed Wing Single Engine
  • Light Fixed Wing Multi-Engine
  • Helicopter
  • Always consult your installation shop for best application.
