Comant CI-150-500-L Wifi Antenna

$1281.00/Each
Quantity
Add to Wishlist
Part# 11-19402
MFR Model# CI-150-500-L

Overview

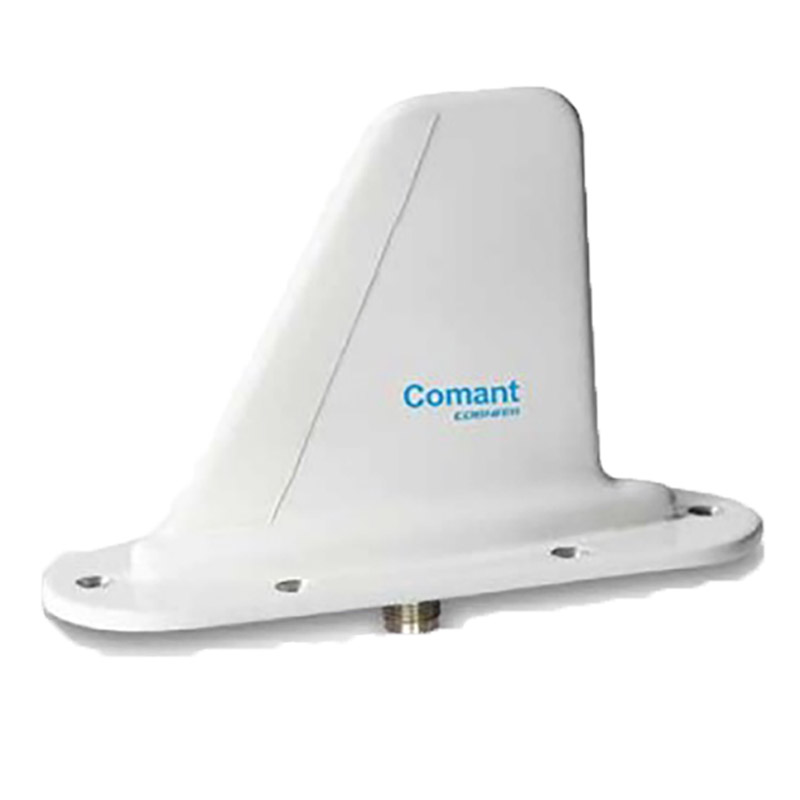

Comant’s six through hole blade style mount Wi-Fi antenna with TNC port. Intended for Wi-Fi applications using 11.802 data protocol. Adds the 5170 to 5820 MHz range. Applications include the ability to receive wireless intranet and data transfer while the aircraft is parked on the ramp. Suitable for top mounting for both light and heavy fixed wing single engine / multi-engine , helicopter and business jet aircraft.

Specifications

  • Electrical
  • Frequency: 2400-2500 MHz and 5170-5820 MHz
  • VSWR: 1.6:1 Max
  • Polarization: Vertical
  • Radiation Pattern: Equivalent of 1/4 wave stub
  • Impedance RF: 50 Ohms
  • Efficiency: 90% Min
  • Power RF: 100 Watts Max

  • Mechanical
  • Weight: .5 lb
  • Height: 3.4 in
  • Finish: Glossy White
  • Connector: TNC (female)

  • Federal Specifications
  • FAA TSO: Not Applicable
  • RTCA Environmental: DO-160C

Documents

  • Heavy Fixed Wing Single Engine
  • Heavy Fixed Wing Multi-Engine
  • Business Jets
  • Always consult your installation shop for best application
