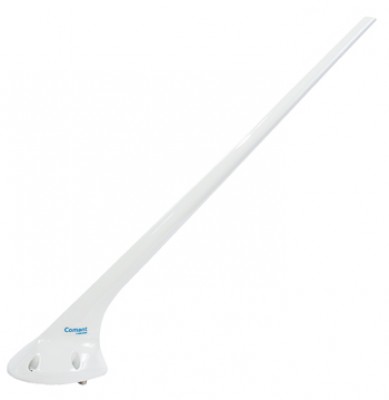

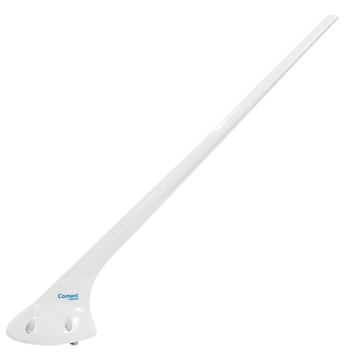

Comant Comdat VHF / GPS WAAS Antenna Ci 2580-200
MFR Model# CI-2580-200
Overview
|
The CI 2580-200 is Comant’s newest ComDat VHF/GPS antenna designed specifically to meet the GPS WAAS Gamma 3 specifications required by the Garmin G1000 system. The patented technology provides 80 dB of VHF harmonic suppression offering VHF and GPS in one radome without in-line filters. Gamma 3 WAAS allows for primary navigation using GPS for all phases of flight including precision LPV approaches. This antenna (CI-2580200) has tested and passed demanding direct effects lightning environmental testing. Not intended for portable GPS receiver systems. Frequencies Covered: VHF: 118-137 MHz GPS: 1575.42 MHz +/- 3 MHz 26.5 - 30.1 dB Gain |
Click here to go to Cobham Rebate Website for full Terms and Conditions.Specifications
MODEL CI 2580-200 | |
VHF Specifications | |
Frequency | 118-137 MHz |
VSWR | 2.5:1 |
Polarization | Vertical |
Radiation Pattern | Omni Directional |
Impedance | 50 Ohms |
Power Rating | 50 Watts |
GPS Preamplifier Characteristics | |
Frequency | 1575.42 MHz +/- 3 MHz |
VSWR | 1.5:1 Max. |
Polarization | RHCP |
Radiation Pattern | Hemispherical |
Impedance | 50 Ohms |
Gain | 26.5 dB - 30.1 dB |
DC Voltage | 4 - 24 Vdc |
DC Current | 40 mA typical - 60 mA Maximum |
Noise | 2.5 dB Maximum |
Mechanical/ Environmental | |
Weight | 0.6 lb. Maximum |
RTCA Env. / TSO | DO 160D / C169(Class C,D,E,3,4,5,6) C144 |
Connectors | VHF-BNC / GPS-TNC |
Documents
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
According to the installation manual, this antenna would not be supported by the G5.
Per the installation manual, yes, this antenna can be used for the GPS.
Yes. This antenna will work.
Part # 11-11545 is listed in GDL 82 installation manual as an acceptable GPS Antenna. Verified in Rev 5 installation manual.
For the non waas application you will need 11-05850.
Only the antenna is included in the box.
The CI-2580-200 is a tad bit longer, however the hole layout is the same. 1.75X1.625
8130-3 can be requested at time of order for an additional fee. Shipping costs are quoted in the shopping cart once the destination country is selected.
This will work for the WAAS GPS and COM
Comant no longer provides a definitive speed rating. The antenna will work with light and heavy weight single engine aircraft as well as helicopters.
