Comant Ci-408-20 Gps Non-waas Round 27 Db Gain Tnc

$1461.00/Each
Quantity
Add to Wishlist
Part# 11-19430
MFR Model# CI-408-20

Overview

Note: GPS not compatible with most GPS hand held receiver systems.

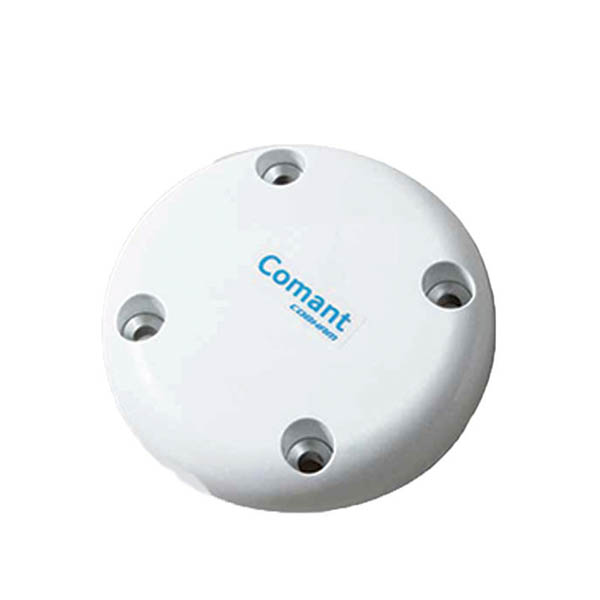

Comant’s four through hole round style mount non-WAAS GPS antenna with TNC port. GPS C144 certified for class 1 LNAV approaches (lateral navigation only). designed to be used with 27 dB gain GPS panel mount systems. Suitable for top mounting for both light and heavy fixed wing single engine / multi-engine, and business jet aircraft.

Specifications

  • RF Characteristics
  • Iridium TX / RX: 1575.42 MHz
  • VSWR: 1.5:1 Max
  • Polarization: RHCP
  • Radiation Pattern: Hemispherical
  • Impedance RF: 50 Ohms
  • Power Handling - TX: 6.5 Watts Average
  • Lightning Protection: DC Grounded
  • Gain: +3 dBic @ Zenith

  • Mechanical
  • Weight: 0.45 lb
  • Finish: Glossy White
  • Connector: TNC (female)

  • Federal Specifications
  • FAA TSO C144
  • RTCA Environmental DO-160G

Documents

  • Light Fixed Wing Single Engine
  • Light Fixed Wing Multi-Engine
  • Heavy Fixed Wing Single Engine
  • Heavy Fixed Wing Multi-Engine
  • Business Jet
  • Always consult your installation shop for best application.
