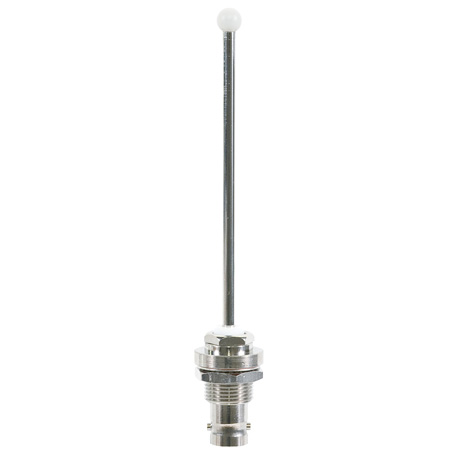

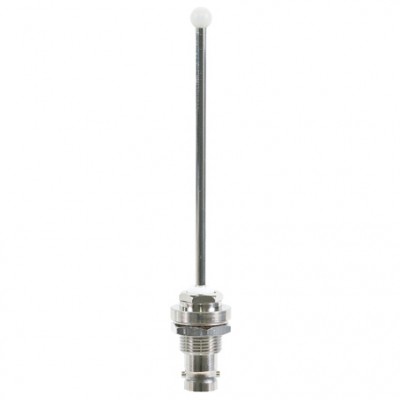

Frequency • 800-870 MHz Stub-type antenna tuned for the 800- 870 MHz radio telephone band. Intended for use on low-flying aircraft and helicopters. CI 306 available with BNC connector and mounts through a single 0.600” inch diameter hole. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
MODEL CI 306 UHF ANTENNA | |
Electrical | |
Frequency | 800 to 870 MHz |
VSWR | 1.5:1 Maximum |
Polarization | Vertical |
Radiation Pattern | Equivalent of 1/4 Stub |
Impedance | 50 Ohms |
Power RF | 50 Watts |
Mechanical | |
Weight | 0.15 lb. Maximum |
Height | 4.0 in. Maximum |
Material | Nickle Plated Brass |
Finish | Tin Nickel Alloy |
Connector | BNC |
Environmental | |
Temperature | -55ºC to +70ºC |
Altitude | 25,000 ft. |
Air Speed | 250 Knots TAS at 25,000 ft. |
