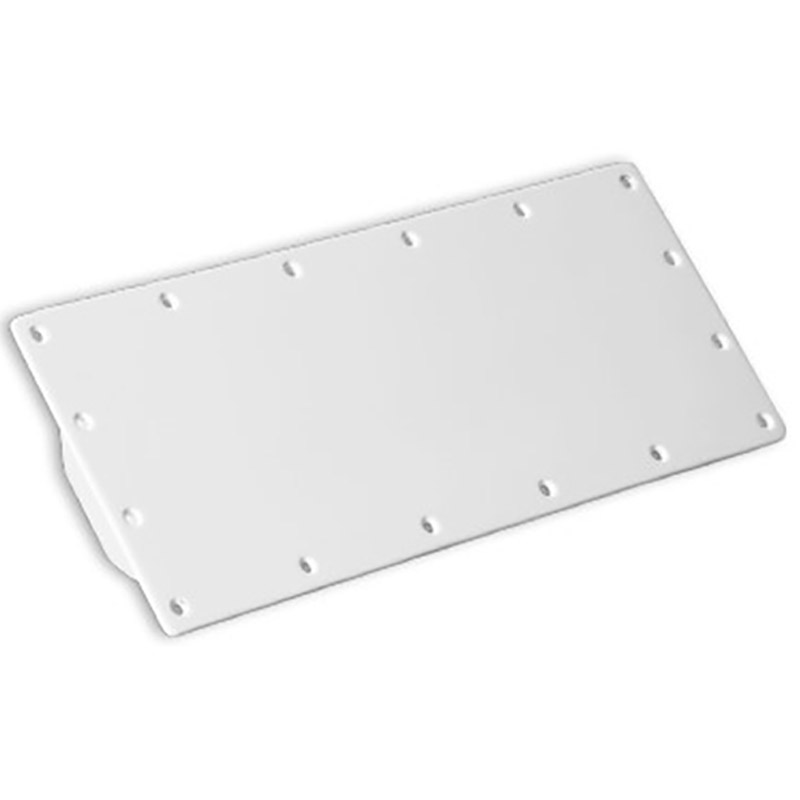

Comant CI-165-1 Marker Beacon Flat Flush

$2739.00/Each
Quantity
Add to Wishlist
Part# 11-19403
MFR Model# CI-165-1

Overview

Comant’s sixteen though hole flat flush mount marker beacon antenna with dual BNC ports. 75 MHz frequency supports high sensitivity marker beacon receivers. Provides dual marker beacon signal outputs at the antenna so eliminating the need for a splitter. Suitable for bottom mounting with business jet aircraft.

Specifications

  • Electrical
  • Frequency 75 +/- .15 MHz
  • VSWR
  • 1.5:1 Max at 75 MHz
  • 5.0:1 Max at 75 +-.15 MHz
  • Polarization Horizontal
  • Isolation btwn Ports 20 dB Minimum
  • Impedance RF 50 Ohms
  • Resistance DC DC Grounded
  • Power RF Receive Only

  • Mechanical
  • Weight 1.0 lb
  • Height Flush Mount
  • Construction Aluminium Housing Glass
  • Lam. Cover
  • Finish White Poly. Enamel /Housing
  • Flat Grey
  • Connector BNC (Two Ports)

  • Environmental
  • Temperature -55 to 85 C
  • Altitude 45,000 ft.

  • Federal Specifications
  • FAA TSO C35d

Documents

  • Business Jets
  • Always consult your installation shop for best application
