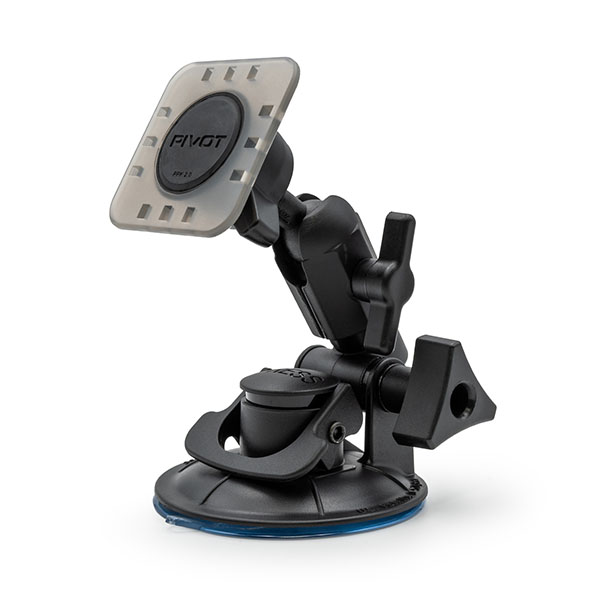

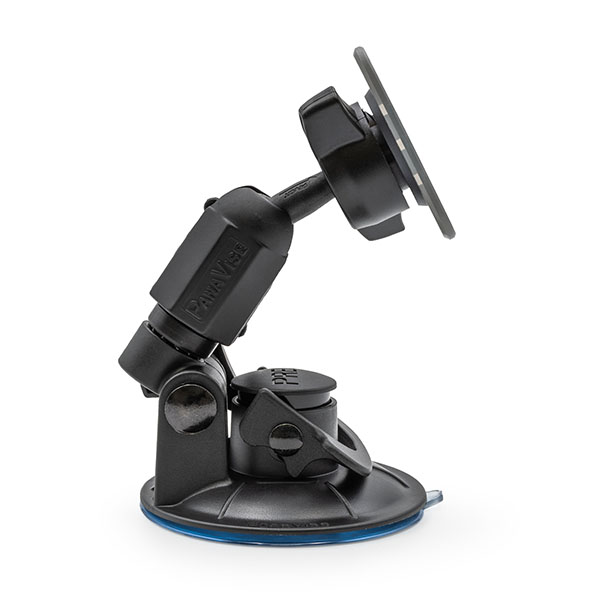

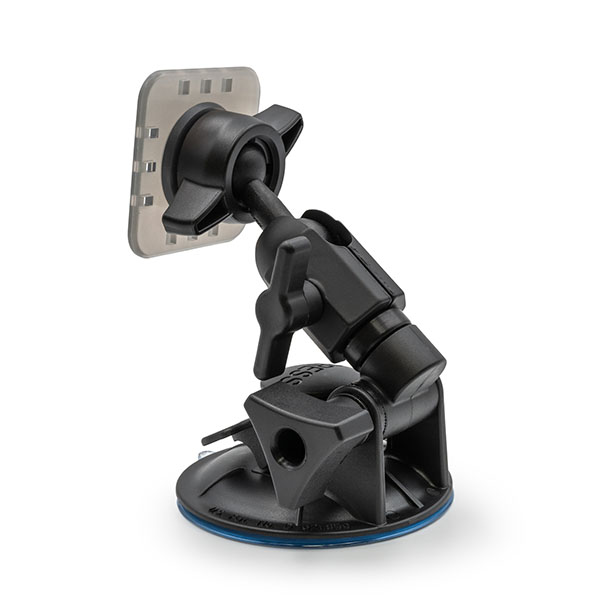

Flyboys PIVOT Shorty Single Suction Cup Mount

$73.95/Each
Quantity
Add to Wishlist
Part# 11-19545
MFR Model# 801PPK

Overview

Compact version of the popular 809PPK Single Suction Cup Mount, ideal for applications where space is limited. Attaches to any non-porous surface with unshakable grip due to the Locking Suction Cup. Adjustable viewing angles.

Features

  • Complete Mounting Solution: Includes all hardware necessary to mount a PIVOT case in virtually any aircraft, vehicle, desktop, or other non-porous surface.
  • PanaVise Locking Suction Cup: Nearly unbreakable grip thanks to the mechanically activated dual-mode suction cup.
  • PIVOT Click-Connect: Quickly and securely attaches to any PIVOT case.
  • FAA Approved: Tested and approved by the FAA for use in-flight. This exact mount is currently in widespread use throughout the airline industry and military aviation.

Specifications

  • Suction Cup Diameter: 3.25 in (82.55 mm)
  • Length: 5.00 in (127.00 mm)
  • Width: 3.86 in (98.43 mm)
  • Height (with suction cup locked): 5.25 in (133.35 mm)
  • PPK-1 Mounting Plate: Impact-Resistant Polycarbonate, TPU Rubber
  • PIVOT Dogbone Adapter: Impact-Resistant Polycarbonate
  • Mount Arm: Stainless Steel, Impact-Resistant Polycarbonate
  • Base: Impact-Resistant Polycarbonate
  • Suction Cup: Aviation-Grade Polypropylene

Compatability

  • All PIVOT cases, past, present, and future.
