Guardian iPad Pro 10.5 Inch Panel Mount With Fan

0 Reviews 0 Answered Questions
Select Fan Voltage:
12V24V
Quantity
Add to Wishlist

Overview

The smartPanel Mount for Apple iPad Pro 10.5-in is a flush mounting system to easily dock and seamlessly integrate your existing iPad into your aircraft instrument panel -- giving it a clean, professional appearance in an easy to view position! Once installed, the smartPanel mount allows your iPad to be docked in seconds, fully connected to power and audio with built-in cable ports. Removal is just as easy -- just slide, push, and remove!

The iPad Pro 10.5-in model is becoming very popular in aviation with ample screen size for viewing and a bright Retina display for superior visibility in even the brightest of cockpits. The smartPanel Mount for iPad Pro 10.5-in brings that functionality and performance within easy reach and sight, beautifully transforming your new or existing panel.

iPad power supply (not included) may be installed as a minor alteration. Please refer to the document link for the Guardian Avionics NORSEE Letter of Authorization.

Designed with General Aviation in mind.
The smartPanel Mount for iPad Pro 10.5-in was designed by aerospace engineers to perform in the unique environment of the cockpit. The spring actuated mounting cradle securely holds the iPad in place during the roughest of turbulence. The clean, flush mount has a shallow chassis allowing it to be easily installed in even the smallest of instrument panels. Built-in ports for the Apple Lightning plug and a 3.5mm audio cable help keep cables safely and securely positioned behind the panel, allowing you the ability to connect to power, data, and audio without the cord mess.

Keep it cool.
As they are being used, iPads generate heat that can affect performance -- resulting in a high-temperature shut down when you might need it most! Pilots have found this out the hard way when using a temporary mounting solution like Velcro to attach their unit to the instrument panel. The smartPanel Mount was designed with cooling in mind. Each mount has a built-in Fan Blower (14 or 28V) capable of supplying 4.6 Cubic feet per minute of Air and because it is powered by the aircraft you will not run out of battery. Each panel mounting tray features cooling channels to circulate Fan Blower air behind your iPad to keep it cool even under the heaviest of use.

Simple Installation.

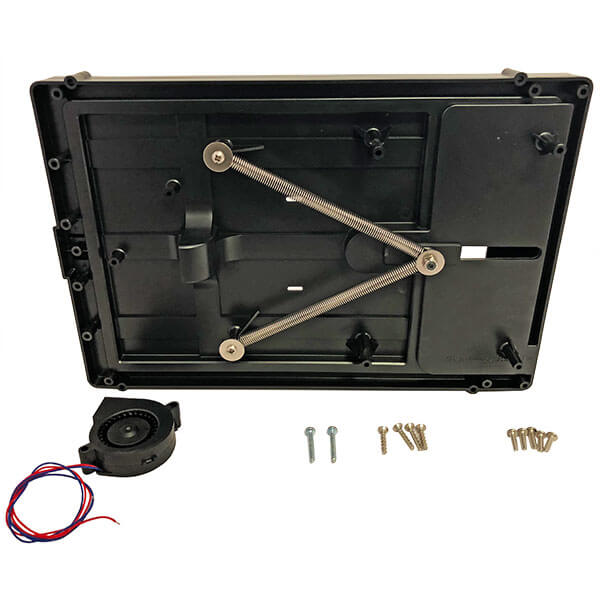

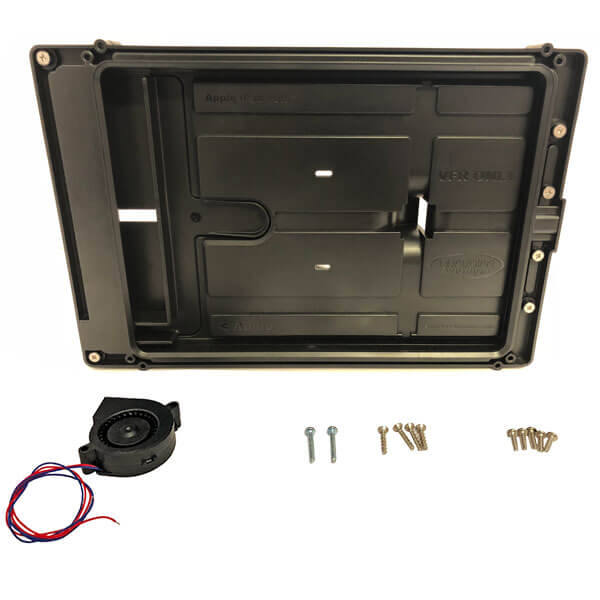

The smartPanel Mount is designed for easy installation in your panel. Each durable molded ABS plastic unit is self-contained and mounts with only four screws. The installation drawings give you the exact panel cutout details and screw positions in either PDF or AutoCAD DXF for precise cuts.

Mount in Automobiles, Boats, RVs, and Displays Too!
Though the smartPanel Mount for iPad Pro was designed for use in aircraft, the durable construction and well-designed flush mount can be used easily for a wide variety of applications -- wherever there is a flat surface!

Features

  • Automobile - A great custom dashboard mount for custom cars, auto restorations, or to incorporate into your own upgrade design to customize your car or truck. An easy way to add a clean and custom navigation display in any vehicle!
  • Marine / Boats - The thin profile flush mount works well to create a custom bridge display in your boat, yacht, or watercraft for charts, weather, and navigation information. Mount in the wall of your cabin for a space-saving entertainment / communication / information system!
  • Recreational Vehicles (RVs) and Campers - Create a custom mount in the wall of your trailer, RV, or mobile home to have a simple entertainment and communication system while saving space!
  • Displays / Office / Home Use - An easy-to-install custom flush mount to add to trade show displays, retail kiosks, educational exhibits, home entertainment systems, and home management systems.

Specifications

  • Made of durable black ABS plastic
  • Overall Dimensions: 11.48" L / 7.84" W / 1.71" Deep
  • Panel Cutout Dimensions: 9.485" L / 7.057" W
  • 1 year Limited Warranty
  • 60-day money-back guarantee
