Lone Star Cyclone 600 - 6 Port Avionics Cooling Fan

From $724.00 to $764.00
Description Part Number Price Buy
Lonestar Cyclone 600 6 Port Fan 12-14V
11-05221
$724.00
Quantity
Lonestar Cyclone 600 6 Port Fan 24/28V
11-05222
$764.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

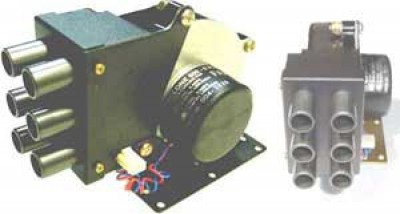

The Cyclone-600 is a light weignt, highly reliable brushless DC avionics blower that delivers 45-50 CFM of forced air to onboard aircraft electronics. The universal mounting system mounts vertical, horizontally or at 45 degrees for straight forward installations for all aircraft make and models.

Brochure Download document
Instructions Download document
Cable Drawing Download document

Features

  • New DC Brushless Motor with FAA/PMA Approval.
  • High Performance 626ZZ Bearing for Extended Life.
  • High Impact Phenolic Housing.
  • Laser Balanced Impeller wheel.
  • Universal Front Plate (4,5,6, Ports).
  • Cable Harness (36"), included.

Specifications

  • Voltages: 12-14 VDC 600mA; 24-48 VDC 500mA
  • CFM: 45/50 CFM at 6000 RPM
  • Dimensions: 4.5in (H) x 3.0in (W) x 6.25in (L)

Benefits

  • Over Current Protection
  • Locked Rotor Protected
  • Reverse Polarity Protected
  • FAA/PMA Approved
  • DO160 D Tested
  • Low Noise
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Wow. Thanks

Ronald D
August 26, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can the mounting base be arranged differently on the Lone Star Cyclone 600 cooling fan? For example biased left or right or so the tubes point up instead of at right angle to base

This uses a universal mounting system where the blower can be mounted vertical or horizontally under the aircraft panel or avionics bay providing multiple installation possibilities for most aircraft make and models.

Q: What is the mating connector please for Cyclone 600-6 (LS03-03035-1)?

5/8 PVC Ducting, (P/N LS03-04001). A 36 Harness (P/N LS03-03016), is included with purchase blower.
