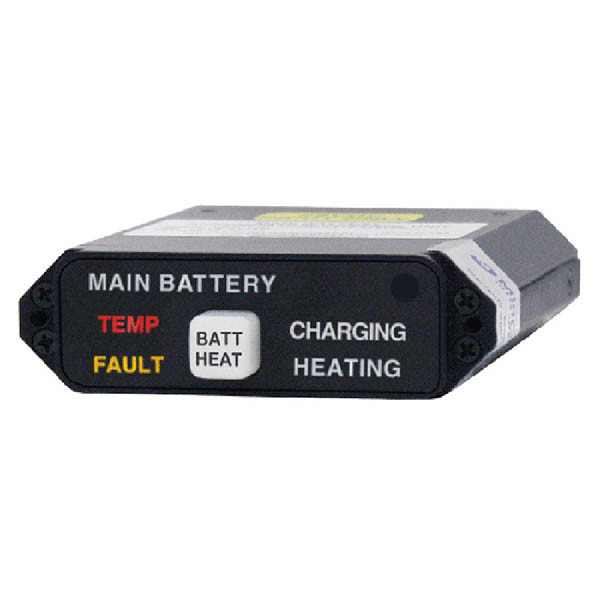

Mid-Continent Instruments and Avionics Annunciation Control Unit TB17

$1700.00/Each
Quantity
Add to Wishlist
Part# 10-07592
MFR Model# MD41-1817

Overview

The MD41-1817 is a compact, self-contained Annunciation Control Unit (ACU). The fully-integrated control unit provides annunciation for True Blue Power TB17 battery systems. It combines the necessary battery annunciations and heater control required for proper pilot interface to the battery system.

Features

  • 28 VDC, 0.20 Amps max power input
  • Weight – 0.26 lbs
  • Long-life LEDs used for all lighting
  • Internally backlit selection switch
  • Daylight readable, deadfront inactive annunciations and automatic dimming
  • External dimming adjustment provided for balancing low-level light conditions
  • Designed and built in Wichita, Kansas, USA

Specifications

  • Model Number: MD41
  • Part Number: MD41-1817
  • Power Input: 28 VDC, 0.20A max
  • Lighting: 28 VDC input LEDs
  • Dimming: Automatic
  • Weight: 0.26 lbs (0.12 kg)
  • Temperature: -55°C to 70°C (-67°F to 158°F)
  • Altitude: 55,000 feet
  • Connector: MCI P/N 7014517
  • Mounting: Rear instrument panel mount
