Home / Avionics / Audio Panels / PS Engineering /PS Engineering PMA7000H-Cvr 10 Place Stereo Audio Panel With Enhanced Cvr
Main Image

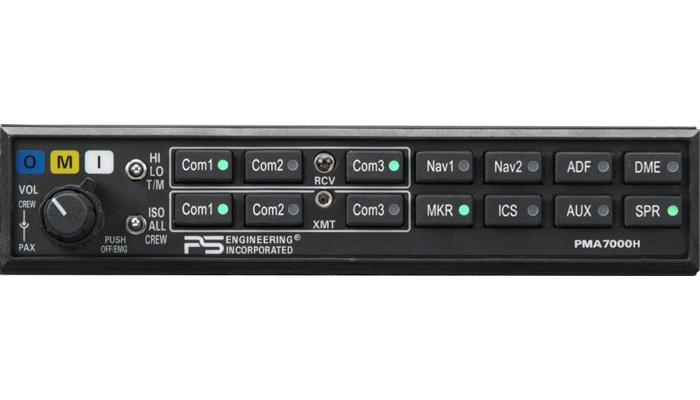

PS Engineering PMA7000H-Cvr 10 Place Stereo Audio Panel With Enhanced Cvr

0 Reviews 0 Answered Questions
$2957.00/Each
Quantity
Add to Wishlist
Part# 11-14369
MFR Model# 050-781-0287

Overview

The PMA7000H is the latest addition to the PMA7000 family, designed specifically for helicopter and other applications where large seat count and high end functionality at a relatively low cost of acquisition are required. The PMA7000H has a 10-place IntelliVox® (automatic VOX) intercom, (8 passenger headset capability along with Pilot and Copilot seats). Additionally, the PMA7000H has Cockpit Voice Recorder (CVR) output as well as Push-To-Talk Intercom (PTT-ICS) function for pilot and copilot. Either PTT-ICS or IntelliVox® can be selected either my an external switch or by looping it to the AUX discrete output.
  • 10-place IntelliVox® intercom (automatic VOX) with individually gated microphones
  • Push-to-Talk Intercom Capability for Crew
  • CVR output
  • Built-in Marker Beacon Receiver
  • Com 3 can act as Cellular telephone input with "DuTel™" telephone distribution
  • Split mode for dual audio panel capability
  • 2 - Hi-fidelity stereo music source inputs
  • 3 - Isolation modes - Pilot Isolate, All, and Crew
  • Front panel music mute modes - Mute On or Mute Off
  • Front panel selection of intercom between crew while in Split mode
  • 4 - unswitched inputs, with front panel unswitched input
  • Selectable intercom mode with special "Alternate Intercom Mode"
  • RAM (Radio Master Mute) eliminates constant back ground noise from radio static
  • 2-year Pro-Support Warranty
Warbird operators will appreciate not only the ability to have HOT-MIC but the 6 pole microphone filter provides the best in microphone noise canceling.

Our original "Du-Tel™ telephone distribution is part of the PMA7000H capabilities. The pilot or copilot can make private phone calls, the passengers can be on a party line with themselves, or combinations there of by way of the on/off hook switches that can be installed.

The PMA7000H is the standard audio panel used in Bell Helicopter's new Business Class 429.
