Quickrax QT200-K Installation Spacer Kit
$431.00/Each
Part# 11-20726
MFR Model# QT200-K
MFR Model# QT200-K
- JUMP TO
- Overview
- In The Box
- Videos
- Reviews
- Q&A
Overview
|
The Quickrax QT200 Installation Spacer Kit for Quickrax 6-32 tray mount rails is the best way to quickly align and clamp the rails to your instrument panel build for alignment drilling the mount holes.

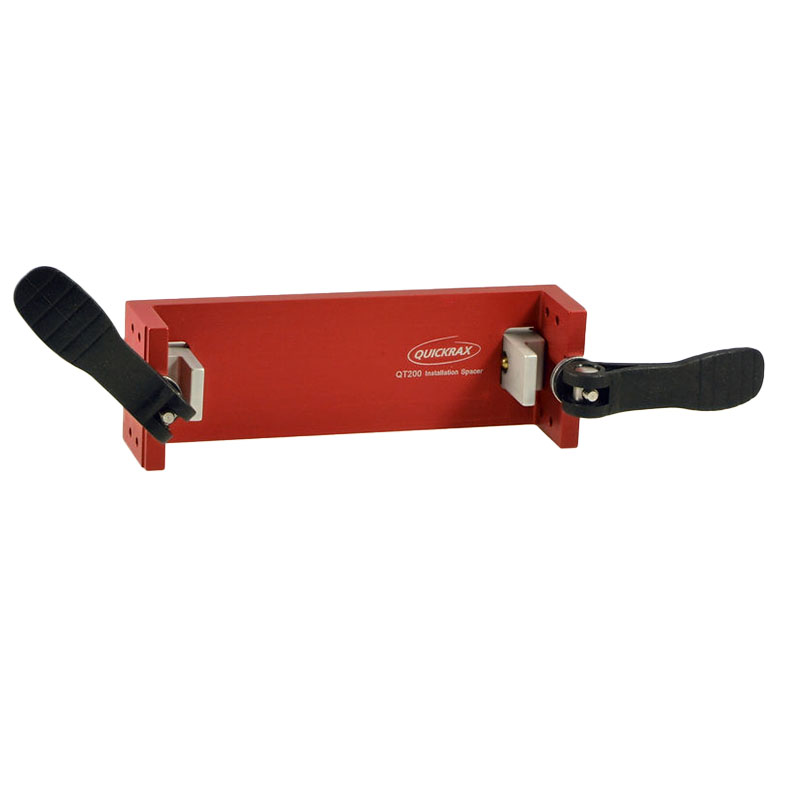

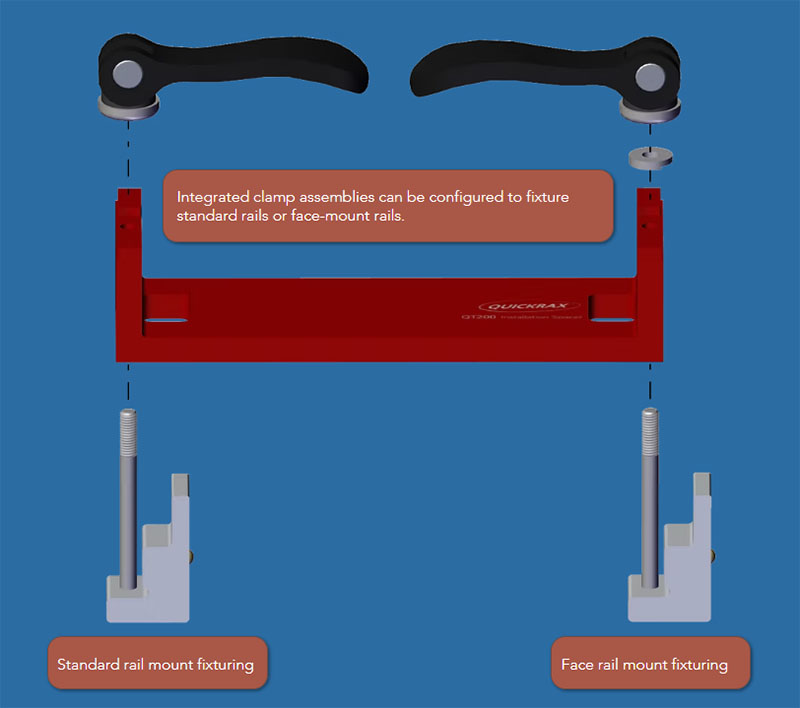

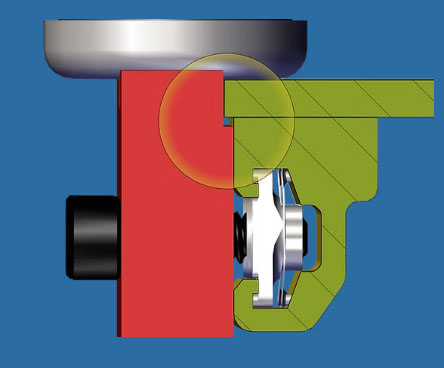

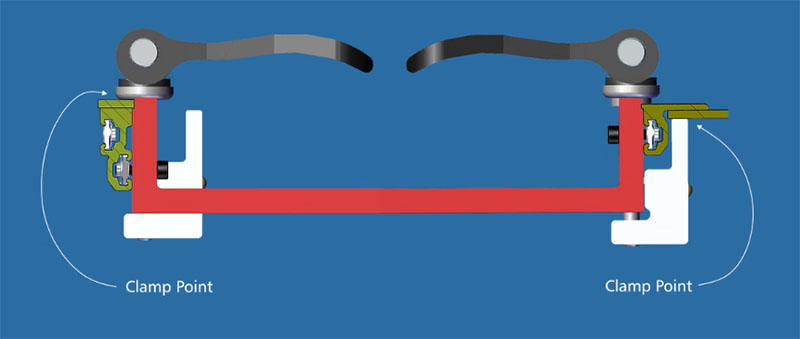

Decrease your setup and installation time while assuring perfect rail spacing and alignment. The QT200 Installation Spacer Tool Kit is a fixture that simplifies Quickrax rail alignment and spacing. This tool is used to fixture Quickrax avionics rails to the instrument panel for alignment drilling the hardware attach points. Kits contain two (2) of these spacers designed to automatically center and square rails spaced at the optimum 6.30" ID along a 6.25" instrument panel avionics bay cutout for rear (standard) mount rails such as the QP1020 and QP1120 rails. It can also be configured to fixture Quickrax face mount rails such as the QP1050. For standard mount rails, the .025" offset built into the QT200 Installation Spacer precisely centers Quickrax rails spaced at the optimum 6.30" width behind a standard 6.25" avionics bay cutout. |

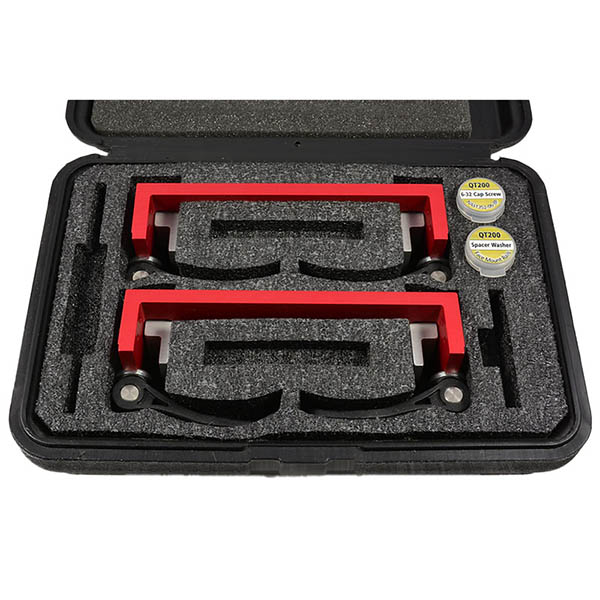

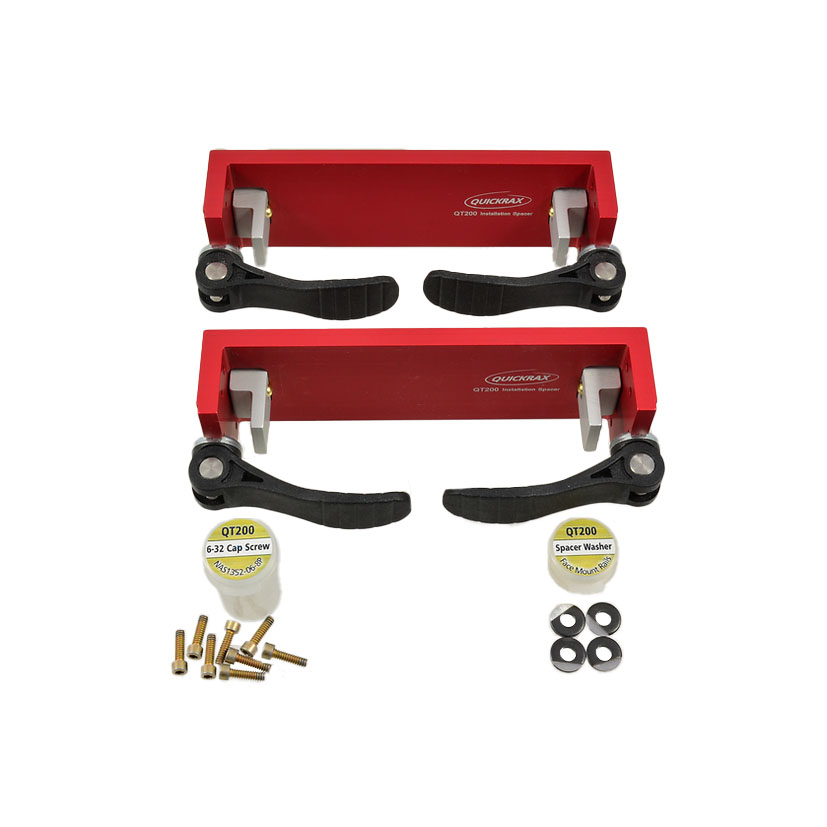

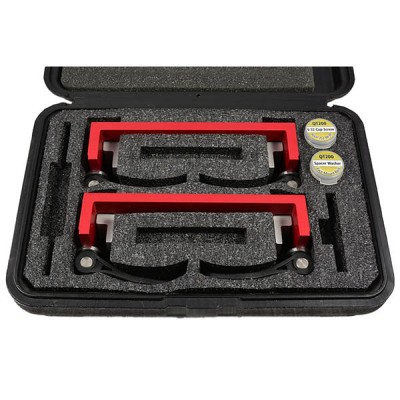

In The Box
- 2) QT200 Installation Spacer assemblies
- 8) NAS1352-06-8P structural 6-32 cap screws for mounting Spacers to Rails
- 4) Milled Spacer Washers for surface mount rail (QP1050, etc.) installations

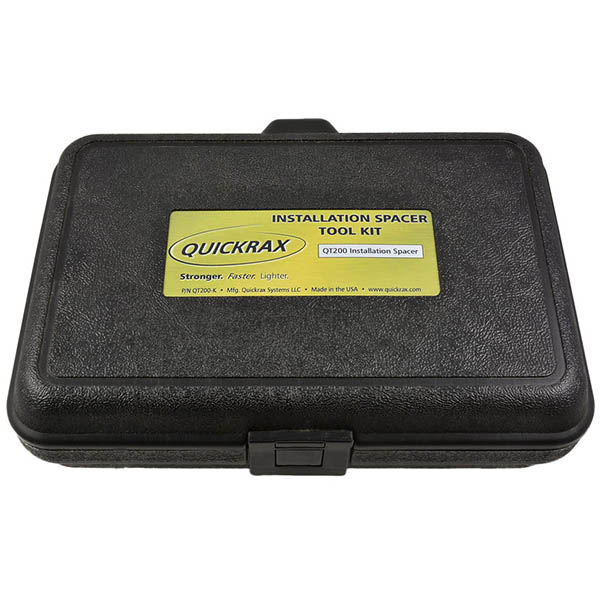

- 1) Tool kit case
