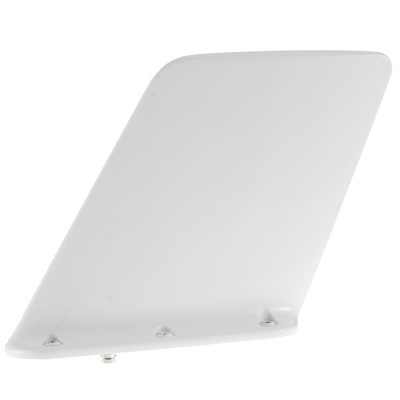

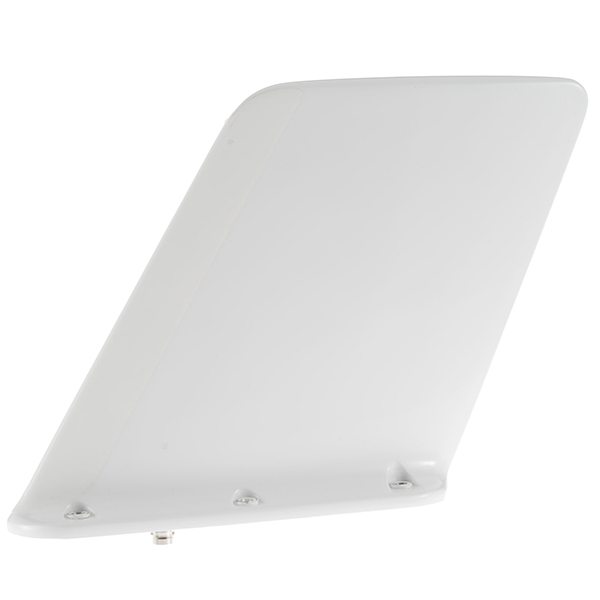

RAMI AV-701 ELT Antenna

$1163.00/Each
Quantity
Add to Wishlist
Part# 11-16528
MFR Model# AV-701

Overview

This antenna is intended for use with an ELT (Emergency Locator Transmitter) for general aviation. It is a passive single port three frequency aircraft blade antenna, designed for high speed aircraft. The circuit Board Housing is made from Polycarbonate.

Specifications

Application
  • Airborne ELT
Frequency
  • 121.5, 243 & 406 MHz
Impedance
  • 50 Ohms Nominal
VSWR
  • 2.0:1 Max at 121.5 MHz
  • 2.0:1 Max at 243 MHz
  • 1.5:1 Max. at 406 MHz
Polarization
  • Vertical
Pattern
  • Omni-Directional
Connector
  • “BNC” Female
Max Height
  • 7.868″
RF Power Capacity
  • 10 Watts CW
FAA TSO
  • C126b
