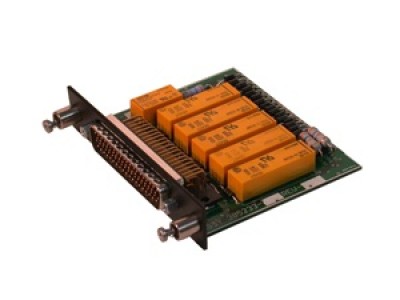

Sandia Sr 54-1 20 Pole Relay Switching Unit

$1117.00/Each
Quantity
Add to Wishlist
Part# 11-11323
MFR Model# 306111-00

Overview

The SR54 switching is ideally suited for GPS and other Long Range Navigation Systems that share an HSI/CDI with a VOR/LOC receiver. The twenty poles of switching allow all resolver and steering lines to be switched simultaneously. And the built-in reversionary switching circuitry to ensure VOR/LOC steering is always displayed on the indicator should power be lost or if an ILS frequency is selected in the NAV receiver

Specifications

  • Certification: PMA Pending
  • Max Pick up Voltage: 16.8 VDC
  • Nominal Coil Impedance: 1440 W Each
  • Drop-out voltage (min): 2.4 VDC
  • Voltage: 28VDC
  • Coil Current: 120 mA Total All Relays
  • Max Contact Rating: 2A @ 28VDC Resistive Load
