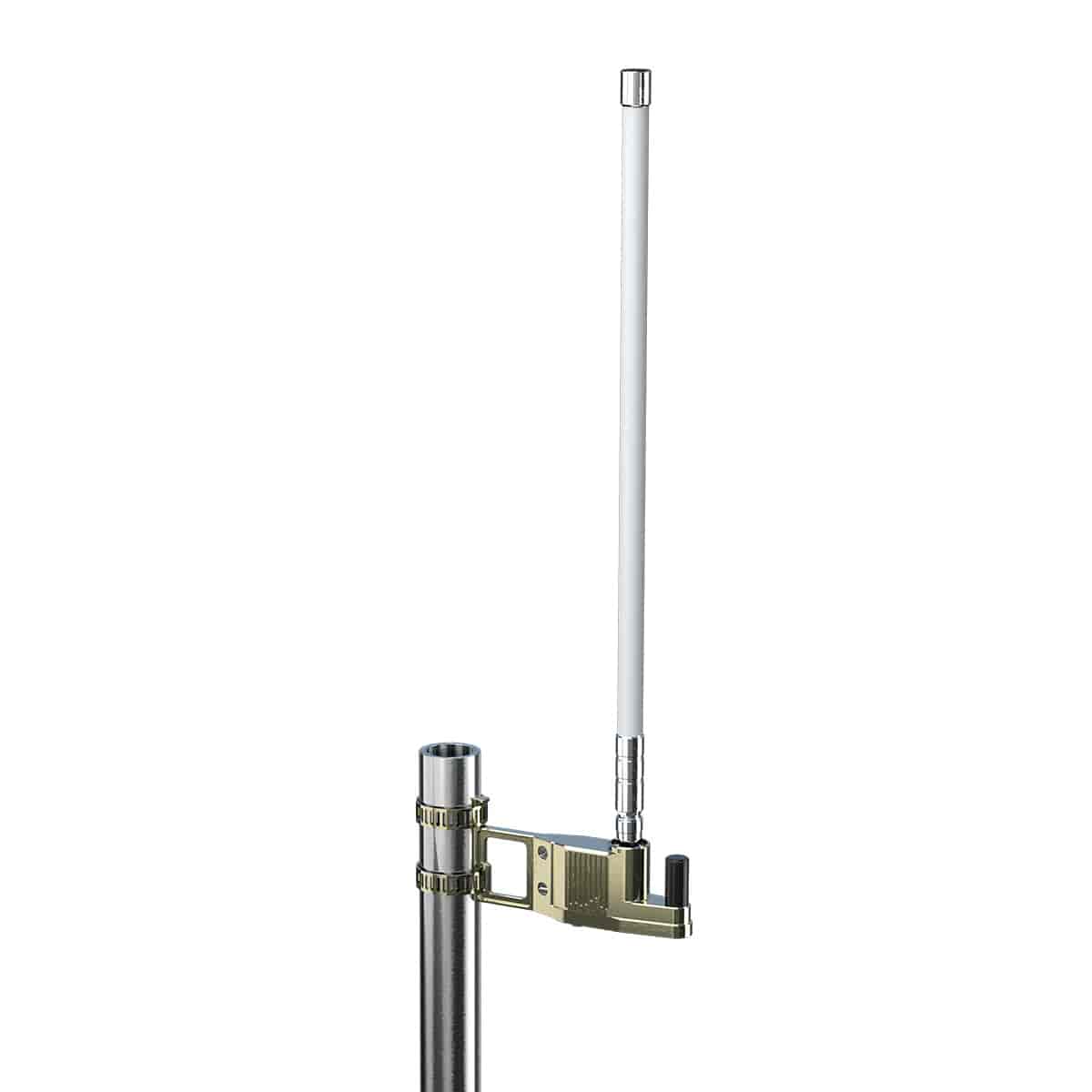

uAvionix Pingstation 3 Weatherproof Ground Station 978/1090 Networkable ADS-B Receiver

0 Reviews 0 Answered Questions
$4437.00/Each
Quantity
Add to Wishlist
Part# 11-19343
MFR Model# UAX-90083-01

Overview

pingStation 3 receives both ADS-B frequencies (978MHz UAT and 1090MHz) simultaneously with a single installation when most competitors are single-frequency. Don’t miss half the picture! pingStation 3 allows you to track ADS-B-equipped aircraft as far as 200+ miles away.
    Easy to deploy
  • Say goodbye to difficult coax cable runs that reduce your reception performance. The all-in-one pingStation 3 includes the receiver, GPS, and antenna in an IP67 weatherproof enclosure, with power and data provided by a single Power-Over-Ethernet (POE) network cable connected right to your LAN. The quick pole-mount clamp design makes installation a snap.
    Your Data, Your Way
  • pingStation 3 provides data in several formats easily integrated into any display or analytical application, including UAS Ground Control Stations, Unmanned Traffic Management (UTM) Solutions, and Flight Information Displays.

Features

  • A dual-band receiver powered by the groundbreaking uAvioinix ping™ firmware defined radio. pingStation receives ADS-B equipped aircraft over 200 miles away on both 978MHz (UAT) and 1090ES. As an added benefit the dedicated ping™ ADS-B radio features extremely low power consumption, more dynamic range and much less heat generation when compared with SDR solutions.

Specifications

  • Input Voltage / Power: 44-57V / 500mA Power over Ethernet
  • Size: 4.5” x 7.5” x 14.8”
  • Weight: 425 grams
  • MTL 1090MHz Dynamic Range: -88dBm ; -79 to 0dBm
  • MTL 978MHz Dynamic Range: -93dBm -90 to -3dBm
  • Interface: Ethernet (JSON UDP) / Compressed VRS (Virtual Radar Server)

In The Box

  • pingStation 3
  • Mounting hardware
  • Weatherproof Ethernet Coupler
  • Installation Manual
  • ICD
