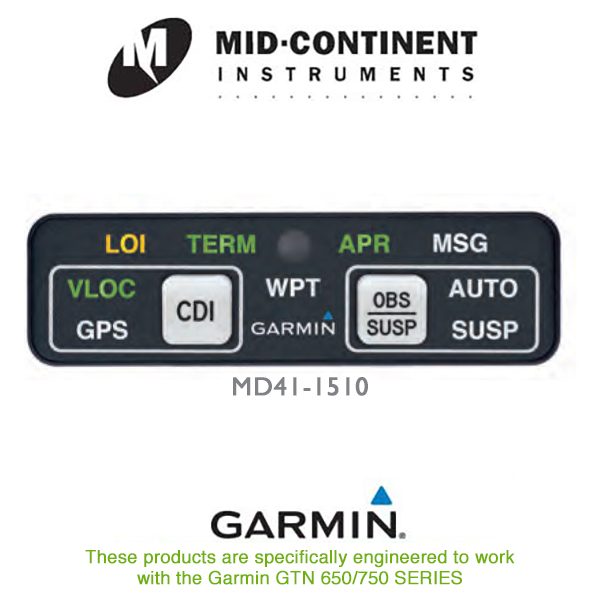

Mid-Continent GPS Annunciators - Garmin WAAS Acu GTN 650 / 750 Series

0 Reviews 1 Answered Question
From $1383.00 to $1385.00
Main Image
Model Number Description Part Number Price Buy
MD41-1512Horizontal, 14V, LED lighting
10-04769
$1383.00
Quantity
MD41-1510Horizontal, 28V, LED lighting
10-04768
$1383.00
Quantity
MD41-1514Horizontal, 28V, 5V lighting, LED lighting
10-06768
$1383.00
Quantity
MD41-1511Vertical, 28V, LED lighting
10-06770
$1383.00
Quantity
MD41-1515Vertical, 28V, 5V lighting, LED lighting
10-06771
$1385.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

With fingertip annunciation and flight information in the pilot’s primary view, annunciation control units (ACUs) offer important features in an efficient design. As an interface with popular NAV and GPS systems, the ACU provides vital safety information, including waypoint, approach status and integrity alerting.

Approved to strict TSO standards, Mid-Continent ACUs are engineered as a compact, affordable solution to the challenge of installing several switches. Most versions are configured 14V or 28V with vertical or horizontal mounting and feature long-life lamps or LEDs with automatic photocell dimming.

Specifications

Orientation
Horizontal

Power Input
14VDC

Lighting Input
14VDC

Power Requirement
.20 A max

Dimensions
.80”H x 2.73”W x 3.20”D

Weight
.26 lb.

Mating Connector
Positronic RD25F10JVL0 or equivalent (MCI P/N 7014517)

Instrument Panel Mounting
Rear mount

Certification
FAA TSO-C129

Environmental Qualification
RTCA DO-160

Features

  • Compatible with Garmin GTN 6XX/7XX WAAS Navigators
  • Incudes CDI and suspend mode switching, independent of OBS per new GTN requirements
  • Compact, self-contained GPS annunciation control unit
  • Automatic-dimming and daylight readable LED lighting
  • Single cutout and locking D-subminiature connector reduces installation costs
  • Quality Mil-Spec connector included
  • TSO-C129 certified
  • Qualified to RTCA DO-160 environmental specs
  • Designed and built in Wichita, Kansas, USA
  • One-year limited warranty

Documents

Reviews

Submit a Review

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this work with the new GNX-375?

No, these annunciators are to be use with the GTN series only.
