- Photo may represent series and not specific product
- SHARE

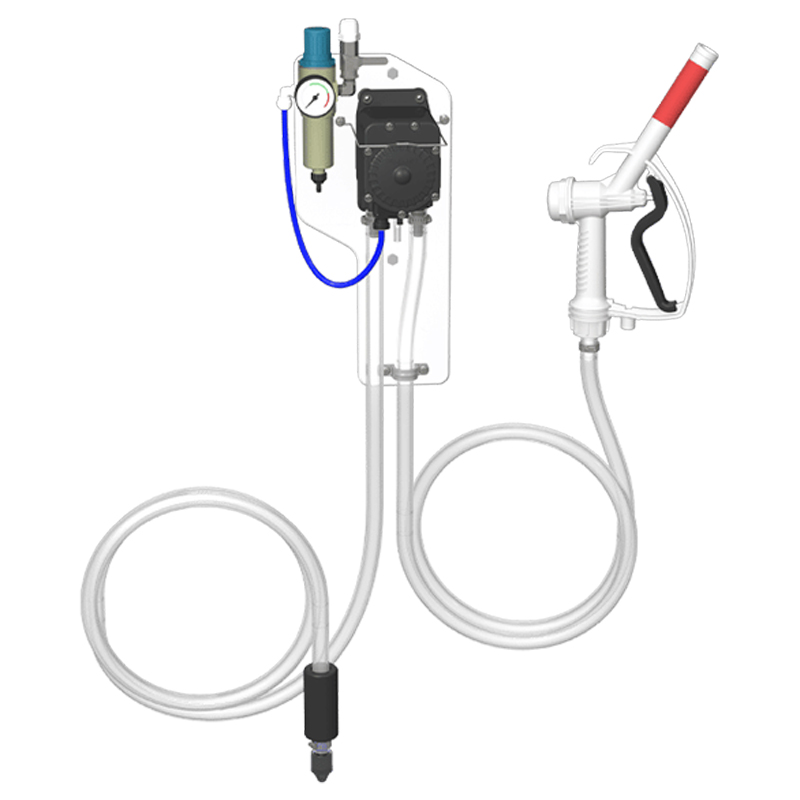

FoamIt Chemical Transfer Unit- Exposed Pump- 1 Product- Santo
$877.00/Each
Part# 09-06202
MFR Model# CTX1
MFR Model# CTX1
Overview
| FoamIt Chemical Transfer Unit- Exposed Pump- 1 Product- Santo |
Features
- Transfer each product at up to 3.5 gal/min (13.2 l/min)
- Tool-free pump changes with our quick-change pump bracket
- Chemically-resistant PVC hose
- Weighted suction line with filter and check valve
- Air regulator with filter
- Strain relief on the discharge hose
- Poly fill gun with Hastelloy components for compatibility
- Air-operated diaphragm pump with quick-release hose barbs
- Choose Santoprene, Viton, and/or Kalrez pump seals
Specifications
- Power Type: Compressed air
- Chemical pickup type: draws from pre-mixed solution and concentrated product
- Number of products unit can draw from: one product per pump
- Capacity: 1.3 gallons (5 Liters)
- Suction line length/diameter: 8 ft. (2.4 m) clear braid hose with 1/2 in. (12.7 mm) inside diameter
- Discharge line length/diameter: 8 ft. (2.4 m) clear braid hose with 1/2 in. (12.7 mm) inside diameter
- Discharge wand/tip type: Polypropylene fill gun
- Flow rate*: 3.5 gal/min (13.2 l/min)
- Pump seals: Santoprene, Viton, or Kalrez
- *Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
