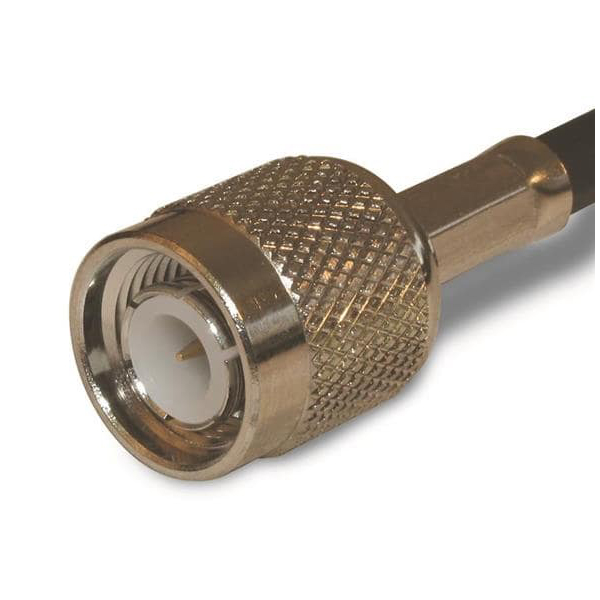

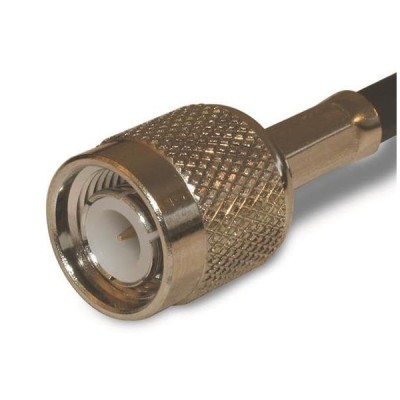

Amph enol TNC 122108 Straight Plug Standard Cable
MFR Model# 122108
Overview
|
RF Connectors / Coaxial Connectors TNC STRAIGHT PLUG RG58/LMR 195. Amphenol RF TNC Threaded Connector Series are miniature, threaded weatherproof units with a constant 50Ω impedance that operate from 0-11GHz. There are two types of TNC connectors: Standard and Reverse Polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors.Many TNC connectors are recognized under the component program of Underwriter's Laboratories and have undergone stringent testing from an independent laboratory. |
Specifications
- Product Category: RF Connectors / Coaxial Connectors
- Manufacturer: Amphenol
- RoHS: RoHS Compliant By Exemption Details
- Product: Connectors
- RF Series: TNC
- Gender: Plug
- Impedance: 50 Ohms
- Maximum Frequency: 11 GHz
- Termination Style: Cable - Crimp
- Orientation: Straight
- Mounting Type: -
- Cable Type: RG-58, RG-58A, RG-58C, RG-141, RG-303, LMR195, Belden 7806A
- Packaging: Bulk
- Body Finish: Nickel
- Body Material: Brass
- Body Style: Straight
- Brand: Amphenol RF
- Contact Material: Brass
- Contact Plating: Gold
- Contact Termination: Crimp
- Coupling Mechanism: Threaded
- Isolation Type: Not Isolated
- Mating Cycles: 500
- Series: TNC
- Factory Pack Quantity: 1
- Voltage Rating: 500 V
- Unit Weight: 0.493835 oz
Documents
Verified Purchase
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This will work with the GDL 82's GPS port and the GA 35 antenna. It is meant for RG 58 cable. For a RG 400 TNC connection, please see part # 11-04447.
