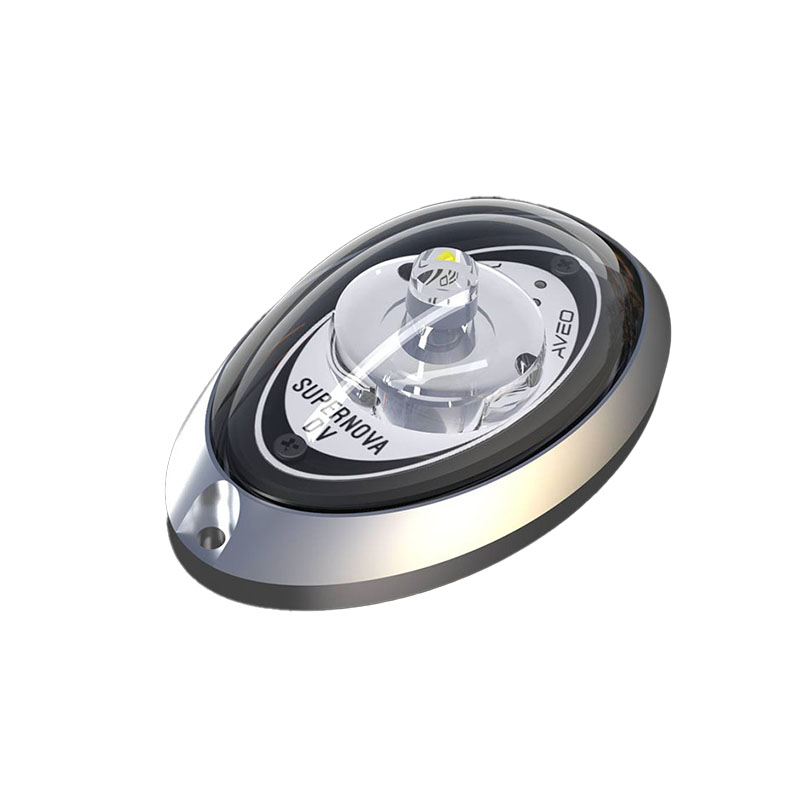

Aveo SuperNova DV – Anti-Collision Light
Select Color:
WhiteRedGreenOverview
|
Anti-collision LED light White or Red or Green
The SuperNova DV – White or Red or Green tiny anti-collision light is a high powered LED light. It have been designed to be lightweight, with low drag and with a low power draw to meet the highest requirements of all aircraft. It contains of red or white or Green LEDs. NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT. THIS IS NOT A TSO CERTIFIED LIGHT |
Specifications

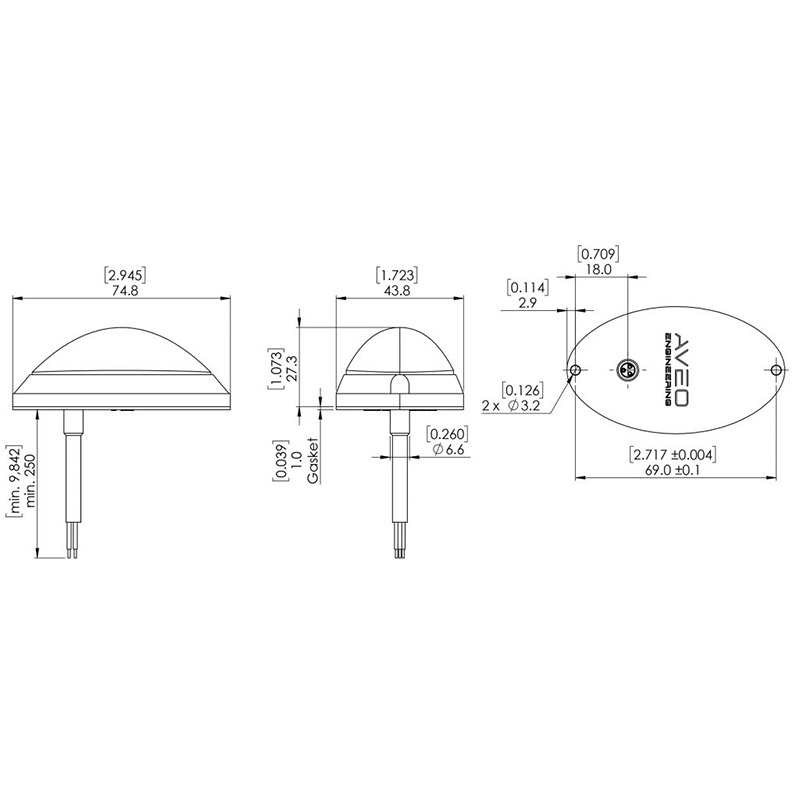

| Dimensions (mm): | 74.8 x 43.8 x 27.3 |
|---|---|
| Dimensions (inches): | 2.945“ x 1.723“ x 1.073“ |
| Weight: | 64g / 2.25 oz |
| Operating Voltage Range: | 9-18 V DC |
| Input Current @14V (peak) Red: (AVE-SNDVSYR-D01) White: (AVE-SNDVSYW-D01) Green: (AVE-SNDVSYG-D01) | 0.25 A 0.26 A 0.34 A |
| Input Power @14V (peak) Red: (AVE-SNDVSYR-D01) White: (AVE-SNDVSYW-D01) Green: (AVE-SNDVSYG-D01) | 3.5 W 3.64 W 4.76 W |
| Repetition Rate of Strobe: | 50 cycles per minute |
| Ambient Temperature: | from -55°C to +85°C from -67°F to +185°F |
| Overheat Protection: | Yes (+85°C / +185°F) |
| Reverse Polarity Protection: | Yes |
| Transient Voltage: | 38 V at 2 sec max, both polarities |
| Under-Voltage Protection (lockout): | Yes |
| Over-Voltage Protection (lockout): | Yes |
| Waterproof, Dust-proof, Vibration-proof: | Yes |
Documents
- Spec Sheet (PDF)
