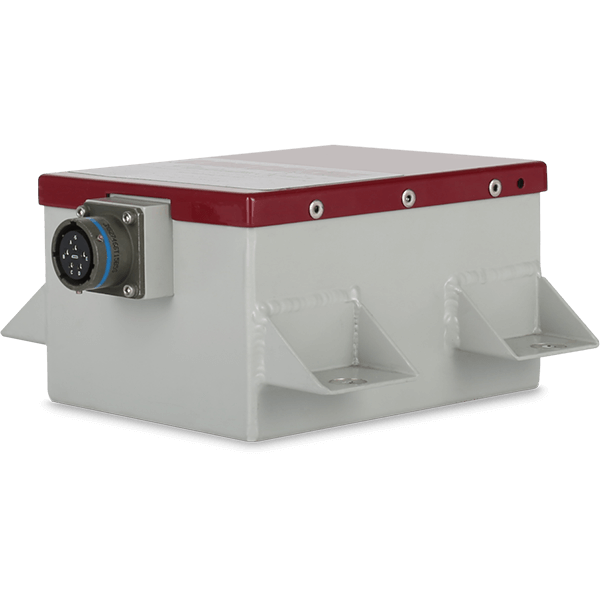

Concorde RG-121-1 Aircraft Battery

0 Reviews 0 Answered Questions
$2889.00/Each
Quantity
Add to Wishlist
Part# 11-11647
MFR Model# RG-121-1

Overview

The RG-121-1 is a Concorde Platinum Series Aircraft Battery. The Platinum Series is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications. TSO
  • Test Temperature @ 23°C (74°F) = C1 is 2.0 Ah
  • Test Temperature @ -18°C (0°F) = C1 is 1.3 Ah
  • Test Temperature @ -30°C (-22°F) = C1 is 0.5 Ah
This Concorde Battery is TSO Approved under FAA TSO C173 Aircraft Batteries. TSO Approved authorizes Concorde Battery to produce a part to a Technical Standard Order. TSO Approved is both design and production approval of the battery.

Emergency Battery for lighting, standby, back up power, avionics and FADEC. Protects and extends the life of other avionics. Concorde\'s Emergency Batteries float directly on the DC buss with no need for a dedicated charger. This results in a high inrush current which extends battery life with fast recovery time from discharge. With the battery floating directly on the buss, transient spikes in the DC power are absorbed. These batteries are self regulating on charge and will take only the current required to maintain it at full charge.

Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.
  • Maintenance free
  • Constructed with non removable vent valves - no addition of electrolyte or water required
  • Aerobatic: Non spillable at any altitude or attitude
  • Factory tested to assure airworthiness
  • Manufactured with absorbed glass mat separators (AGM)

Specifications

  • Primary Aircraft Purpose:Emergency Aircraft Battery
  • Voltage:24v
  • Rated Capacity C1 = 1 hr. rate in ampere hours: 2.00
  • Max Weight: 6.40 lb / 2.9 kg
