Conductor Coil Cord For Garmin Autopilots Install

Select Size:
12 Wire24 Wire
Quantity
Add to Wishlist

Overview

PMA'd for installation with Garmin Autopilots
See Garmin's AML (Approved Model Listing)

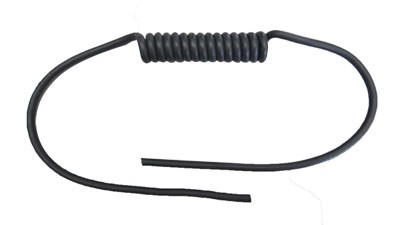

Cygnet offers two coil cords used to connect control wheel switches to the instrument panel. The coiled section extends and contracts allowing full control wheel range of motion.

Specifications

  • Fire Retardant per MIL-C-27072
  • 12 or 24 Conductor, #22AWG, per MIL-W 16878/6

Reviews

Great!

C. L Verified Purchase

Coil Cord 12 Conductor

September 11, 2023

OK - as Expected

C. L Verified Purchase

Coil Cord 12 Conductor

August 22, 2023

The product is excellent quality.

Kincaid A Verified Purchase

Coil Cord 12 Conductor

April 21, 2022

Excellent product! As always from Aircraft Spruce!!

Justin H
April 7, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Regarding 24 Conductor Coil Cord: What is the coil diameter? What is the straight wire diameter?

Here are the requested dimensions: Coil Diameter 1-1/4" and straight wire diameter 5/16".

Q: Is the inner wire insulation standard extruded Tefzel or the wrap (spiral serve) type?

The insulation on the wires meets MIl-W16878/6 and can be a few different products that meet the minimum specifications. The outer jacket is flame resistant polyurethane per MIl-C-27072.

Q: How long is the coiled or stretchable part of the cord?

6 inches unstretched.
