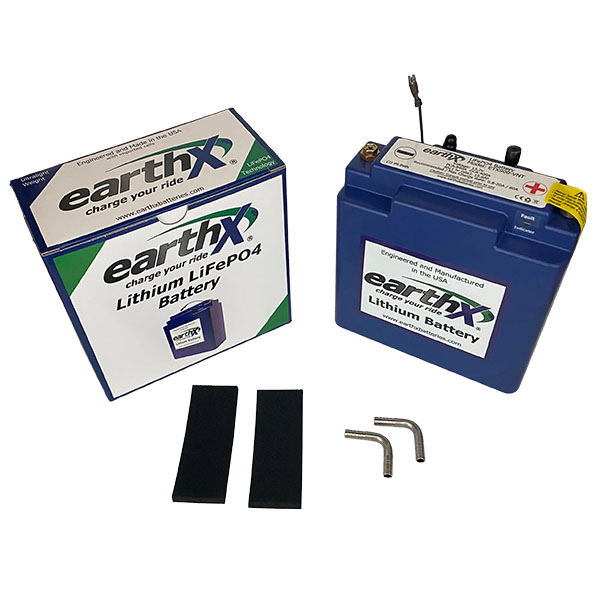

EarthX ETX900-Vnt Aircraft Lithium Battery
$819.00/Each
Part# 11-16211
MFR Model# ETX900-VNT
MFR Model# ETX900-VNT
Overview
|
Note: Not FAA Approved. Intended for use in experimental aircraft only.

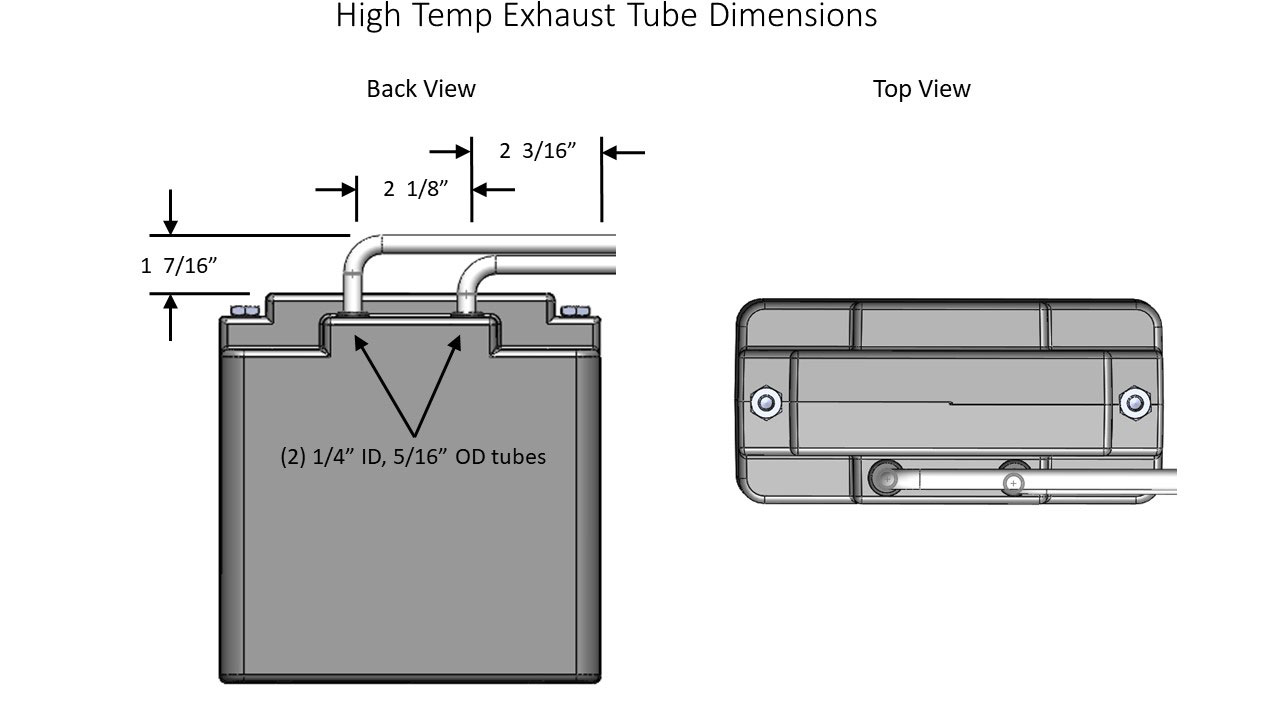

The ETX900-VNT designed for in-cabin installations! This battery is based on the ETX900 design with the same cranking, capacity and electronic protections (BMS) but also has the addition of built-in thermal runaway containment and venting for in-cabin installation with 1 venting tube that is 6 feet in length, 1/4″ inside diameter, 5/16″ outside diameter. Under the accessories button, you can order custom lengths of tubing if needed. It is 5.4 pounds and can be used in an aircraft that has an alternator/generator with 80 amps output or less and smaller than 550ci. The ETX900-VNT meets all of the DO-347 lithium battery use in aircraft testing requirements. This is not a TSO or PMA part number. This battery also comes with an LED battery fault light indicator on the battery itself plus it can be programmed into your EFIS or wired to the control panel of your aircraft with a simple 12V LED light that alerts you to the state of charge and state of health of the battery. (Please see the manual for details) The battery management system (BMS) protects the cells from:
|
Features
- The ETX Hundred series is fully protected by an integrated Battery Management System that protects the cell’s from over discharge, over charge, short circuit, thermal protection and built in cell balancing to ensure charge levels are equal (balanced) 100% of the time for optimal performance
- and life.
- The most trusted and used lithium battery on the market. Multiple experimental aircraft manufacturers and experimental engine manufacturers such as Rotax Engines, Continental Motors, UL Power Engines and Viking Engines approve the EarthX brand.
- LiFePO4 chemistry, the most abuse tolerant of all lithium battery chemistries.
- Higher voltage while cranking mean faster starts.
- Extremely light weight, 70-80% lighter than your lead acid battery.
- 4,000 charge cycle life versus 350 charge cycle life of a lead acid battery. Can last up to 8 years.
- Environmentally friendly, no hazardous lead or acid, will not corrode or sulfate.
- Wider operational temperature range than a lead acid battery. (-22° F to 140° F, -30 ° C to 60° C) . A lead acid’s operational range is(-40° F to 113° F or -40° C to 45° C).
- Vibration tested to DD-311 FAA standard.
- Low self discharge rate and fast charging.
Specifications
| Voltage | 13.2V |
|---|---|

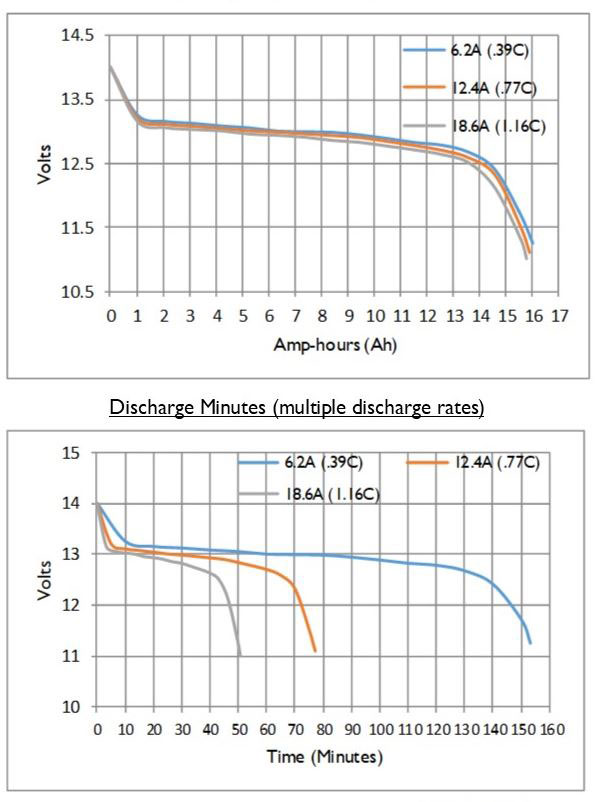

| Capacity | 16Ah @ I C Rate (See charts Below) |
| Capacity vs Temperature | 25°C= 100% 0°C= 92% -30°C= 80% |
| Self-Discharge Rate | <3% / month @ 25°C |
| Pulse Crank Amps (PCA) | 840A (3 sec @ 25°C, voltage >9V |
| Cold Crank Amps (CCA) | 400A (modified SAE test, 3 sec @ 0°F, volts > 7.2V) |
| Continuous Discharge Amps | 150A |
| Standard Charge Voltage | 13.9 - 14.6V |
| Maximum Charge Voltage | 15V |
| Recommended Charge Voltage | 5 - 20A |
| Max Charge Amps | 80A (from vehicle charging system) |
| Life (Charge cycles, 80% depth of discharge) | 4000 cycles @ 1°C discharge rate, 25°C 2000 cycles @ 10°C discharge rate, 25°C |
| Life (Years) | 8 Years |
| Weight | 5.4 lb. (1.8kg) |

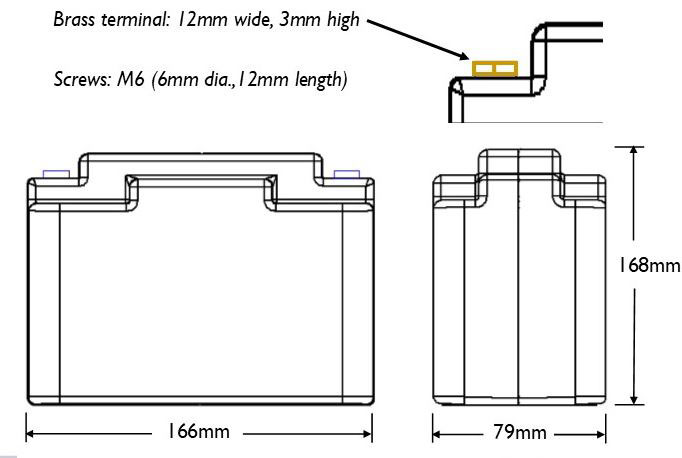

| Dimensions | 6.5 in (L) x 3.1 in (W) x 6.6 in (H) 166mm (L) x 79mm (W) x 168mm (H) |
| Environmental Rating (resistance to water intrusion) | IP 66 (wash down with a high pressure washer) |
| Operating Temperature | -30°C to +60°C |
| Storage Temperature | -40°C to +70°C |
Why Choose EarthX
- You will instantly remove 11+ pounds compared to the lead acid battery in your experimental aircraft! Now that is a huge weight savings.
- Significant increase in cranking power. If you have been using the PC680, you will increase your CCA’s from 170 to 320 and the PCA’s from 520 to 680! Now that’s power to crank your engine!
- Now you can easily have a backup battery and not worry about the additional weight. In fact, if you switch from a lead acid battery and add a backup battery, so you have a primary and a backup, you still have decreased your overall weight by 50%! Note that only the ETX680C/680/900/1200 have the aircraft specific BMS.
- Innovative and sophisticated BMS designed and engineered with redundancy for safety, reliability, and performance. These are EXCLUSIVE features!
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: Does this include the vent kit?
No the vent kit is not included.
