Static Wick ESD-3 Non Certified

$43.50/Piece
Quantity
Add to Wishlist
Part# 11-10681
MFR Model# ESD-3

Overview

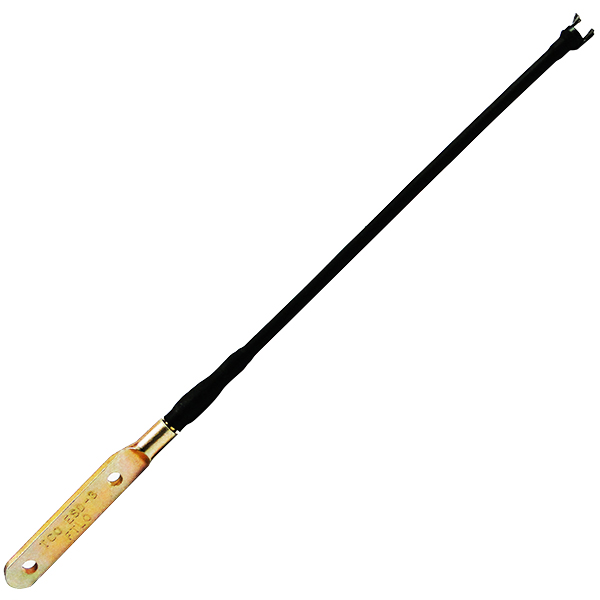

Static Wick ESD-3 (Non-Certified)

  • Length: (Including mounting base) 7.65 inches. (discharger element) 4.75 inches
  • Weight: Less than 5.5 grams
  • Airspeed : 300 knots
  • Temperature: +85°C to -55°C, MIL-STD-202C, Method 102A, Condition D
  • Tension: 50 pound pull longitudinal from plastic end to metal shank
  • Solvents: No physical changes after one hour immersion in aviation gasoline, jet fuel or hydraulic fluids
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Was in shock and shipped quickly

Wagner A Verified Purchase

Esd-3 Static Wick Non Cert

June 7, 2024

we were able to install these in the existing drill holes without complication.

John D Verified Purchase

Esd-3 Static Wick Non Cert

January 11, 2023

Perfect!

Marc G Verified Purchase

Esd-3 Static Wick Non Cert

February 4, 2022

Renato C Verified Purchase

Esd-3 Static Wick Non Cert

October 21, 2021

These static wicks appear to be very well made, and in fact are more substantial than the factory installed wicks on my aircraft. Although they seem a bit pricey at $24, theyre much more economical than the alternative at $73 (!) and appear to be identical (or nearly so) in construction.

W. B
February 25, 2019

Perfect. !!

Michael
November 26, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the physical dimensions of this static wick ESD-1? What it the spacing between the two rivet holes?

The total length is 7.5". The spacing between the two rivet holes is 1".

Q: Does the static wick unscrew from the mounting base so it can be replaced?

No, the static wick is a single piece.

Q: Can I remove the mounting base?

We do not have any data showing this being designed to remove the base. That would be at your discretion and risk.

Q: Does the static wick ESD-3 rivet on or screw in?

These are commonly riveted on but it really depends on the application.

Q: What is the size of the mounting hole on the ESD-3?

.130 inch

Q: What is the width of the base? Thank you

Just over 1/4 inch.

Q: What is the difference between ESD1 and ESD 3?

ESD-1 is for up to 150 knots and ESD-3 would be 300 knots.
