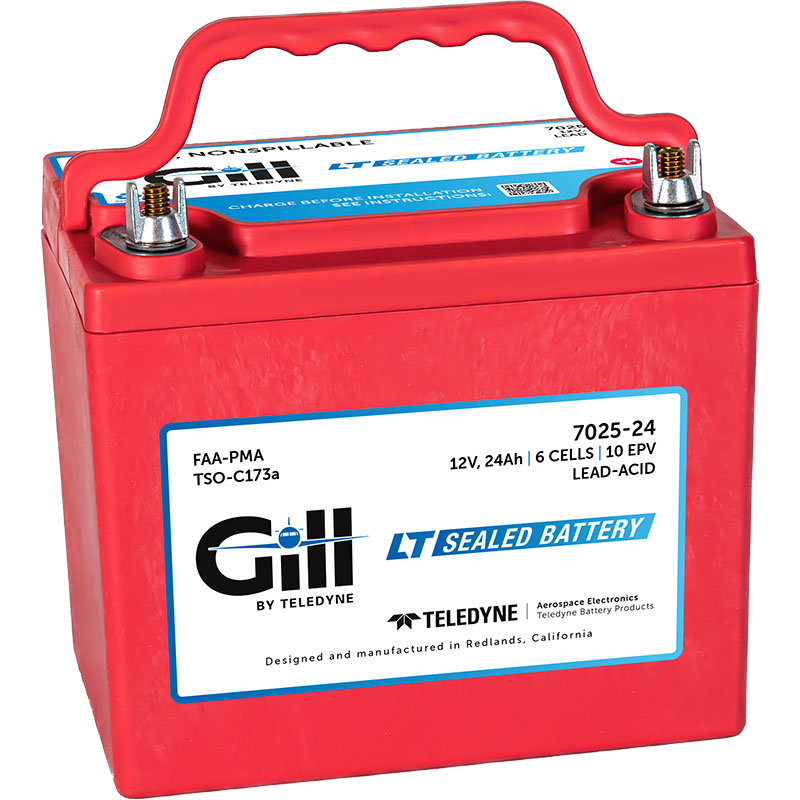

Gill 7025-24 LT Super Capacity Sealed Lead Acid Battery

$634.00/Each
Quantity
Add to Wishlist
Part# 11-16889
MFR Model# 7025-24

Overview

  • The 7025-24 has the highest amp hour capacity available in the 12 volt 25 case size series
  • Factory Sealed, No Electrolyte or Water Required
  • Non-Spillable and Proven for Aerobatic Maneuvering
  • 2 Year Factory Warranty After Installation
  • Robust Starts, Higher Residual Power & Faster Re-Charge Times
  • First Capacity Check Not Required Until 18 Months/1800 Hours
  • Cost Competitive and Best Shelf Life in Lead Acid Chemistry
  • Advanced Valve Regulated Lead Acid (VRLA) Design
  • FAA/PMA Approved, TSO Authorized and Tested to DO-160E
  • LT® Series Batteries Are Fully Recyclable
  • LT® Series Batteries Ship Hazmat Exempt
Super Capacity Gill® 7025-24 is perfect for your 12V small piston powered aircraft needing extra power for navigation, laptops, cell phones and other interconnectivity devices. See application chart link to locate your aircraft and review your battery options.

Battery Type Voltage Amp Hours 30 Minute Capacity Weight Lbs. Battery Diagram PDF
7025-24 12 24.2 33 23.4 Download Full Battery
Specification

Application Chart

Manufacturer Model PMA SUP. #
Aerostar PA-60-600, PA-60-601, PA-60-601P, PA-60-602P, PA-60-700P 64
American Champion 7ACA, 7ECA, 7GCBC 64
Beech 19, 23, 24, 55, 58, 77 11, 64
Beechcraft 19A, B19, 23, A23, A23A, B23, C23, A24, A24R, B24R, C24R, E33, E33A, E33C, F33, G33, 35-33, 35-A33, 35-B33, 35-C33, 35-C33A, D55, D55A, E55, E55A, 58, 58A, 58P, 58TC, G58, 77, 95, B95, B95A, D95A, E95, 95-55, 95-A55, 95-B55, 95-C55, 95-C55A 11, 64
Cessna 120, 140, 150, 150A, 150B, 150C, 150D, 150E, 150F, 150G, 150H, 150J, 150K, 150L, 150M, A150K, A150L, A150M, 170, 172, 172B, 172C, 172D, 172E, 172F (USAF T-41A), 172G, 172H (USAF T-41A), 172I, 172K, 172L, 172M, 172 N, F172D, F172E, F172F, F172G, F172 H, F172K, F172L, F172M, F172N, 175, 175B, 175C, P172D, 177, 177A, 177B, 188, 188A, 188B, T188C, 310, 310B, 310C, 310D, 310F, 310G, 310H, E310H, 310I, 310J, 310J-1, E310J, 310K, 310P, 310Q, 320, 340 11, 64
Commander 112, 112TC, 112B, 112TCA 64
Piper (Aerostar 600) PA-60-600, (Aerostar 601) PA-60-601, (Aerostar 601P) PA-60-601P, (Aerostar 602P) PA-60-602P 11, 64
Piper PA-11, PA-36-285, PA-36-300, PA-36-375, PA-38-112, PA-46-350P 11, 64
Piper PA-11, PA-22-108, PA-22-135, PA-22-150, PA-22-160, PA-23-235, PA-23-250, PA-28-140, PA-28-150, PA-28-151, PA-28-160, PA-28-161, PA-28-180, PA-28-181, PA-28-201T, PA-28-235, PA-28-236, PA-28R-180, PA-28R-200, PA-28RT-201, PA-28RT-201T, PA- 32-260, PA-32-300, PA-32R-300, PA-32RT-300, PA-32RT-300T, PA-36-285, PA-36-300, PA-36-375, PA-38-112 11, 64
Socata, S.A. GA- 7 64
True Flight AA-1, AA-1A, AA- 1B, AA-1C, AA-5, AA-5A, AA-5B 64
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

I received the battery 2mos old since mfg. and the ocv was found at 12.9v. Following the top charge and then installation, it performs great and is plenty for my 172.

Burke H Verified Purchase

Gill 7025-24 Super Capacity Battery

September 3, 2024

Shipment was very fast and crank was very good

John M Verified Purchase

Gill 7025-24 Super Capacity Battery

November 8, 2022

Excellent 12v battery. Dependable & easy to maintain.

William J Verified Purchase

Gill 7025-24 Super Capacity Battery

July 29, 2022

Fast shipping .

John J Verified Purchase

Gill 7025-24 Super Capacity Battery

July 13, 2021

Havent installed yet - jury is still out.

Daris H
January 12, 2021

I replaced my old gill with this one on my Grumman Tiger, the airplane starts like a brand new one! I was so impressed and happy when I hit the start button! I didnt think it will get that result. Thank you!

Vebi
October 13, 2020

Prompt professional service.

Frank S
January 18, 2020

Battery was installed today and seems to do very good.

Ronnie D Verified Purchase

Gill 7025-24 Super Capacity Battery

December 8, 2021

The battery works perfect, the airplane starts like new with it in it. I had ordered one about 6 months ago, and when the freeze hit in Texas, my battery got swollen, I tried to get ahold of the warranty, never made it through anywhere. Had to re-order one, and this time, in 6 months, it went up to 305$, from 245$. Good product tho.

Vebi S Verified Purchase

Gill 7025-24 Super Capacity Battery

June 30, 2021

The order wasnt delivered quickly, but it was delivered quicker than the back order detailed that it would be delivered. I havent installed the battery yet.

Harold R
January 13, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How many cranking amps on this Gill LT 7025-24 battery?

This battery is not rated in cold cranking amps but rated in a IPP/IPR rating.

74 Degrees F | IPP, 1100 amps | IPR, 825 amps
0 Degrees F | IPP, 725 amps | IPR, 550 amps
-22 Degrees F | IPP, 500 amps | IPR, 400 amps

Q: What is the warranty of the Gill 7025-24 battery compared to the Gill G-25 battery?

All 7000 series sealed battery warranties are: 12 months full credit or 600 hours + 12 months pro-rated or 1200 hours which ever comes first from date of install. G series batteries vary in length depending on model number
