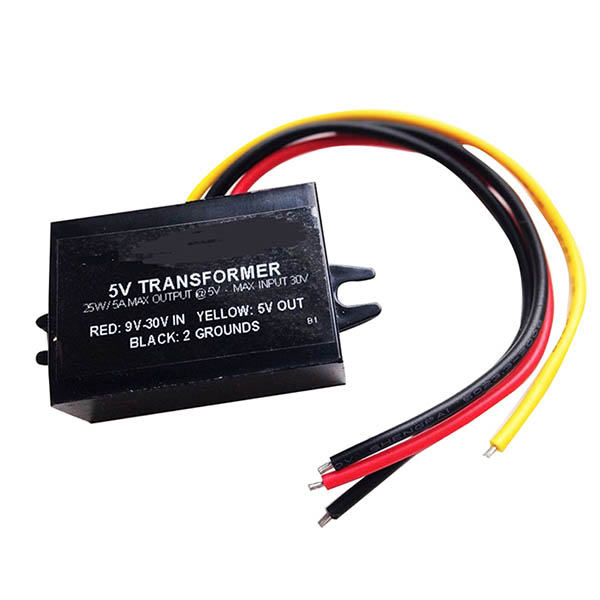

Got Your Six 12-24v to 5v Converter
$29.70/Each
Part# 11-19703
MFR Model# GY6-5VCONV
MFR Model# GY6-5VCONV
Overview
|
Note: For experimental aircraft only The perfect low-cost 5V transformer for your 24 volt OR 12 volt system aircraft. Run ANY device(s) up to 5 AMPS total current draw. Use this in your aircraft to drive a 5V USB port, or other low voltage electronics. Fits in the palm of your hand - it only weighs 2 oz! Rated at 25 Watts, this converter is EASY to wire - Just provide between 8 volts and 30 volts positive to the RED line, Ground to either of the black wires, and 5 volts will flow OUT of the YELLOW wire. Liability/Release Disclaimer: This product is to be used for lighting controls only. As the pilot in command you are accepting all responsibility for the safety of your aircraft, those onboard, and persons or property on the ground. CRAZEDpilot makes no representations of warranties, either expressed or implied, by or concerning any content of these written materials and in no event shall be liable for any implied warranty for any consequential, incidental or indirect damages (including but not limited to damages for loss of business profits or business interruption) arising from the use or inability to use these written materials or equipment. |
Specifications
- Box dimensions: 1 3/4" X 1 1/4" X 3/4" (45mm x 32mm x 18mm)
- Mounting hole spacing: 2 1/8" (55mm)
- Wire Lead Length: 5" (130mm)
- Input voltage: 8V-30V max
- Max Current Draw: 5A max
- Voltage regulation: 2%
- Dynamic response speed: 5% 200uS
- Operating Temperature: -40°C to +85°C
- Voltage regulation: ± 2%
