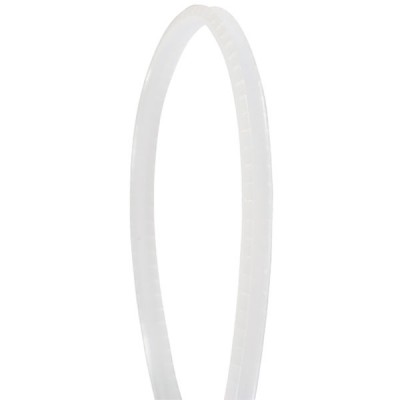

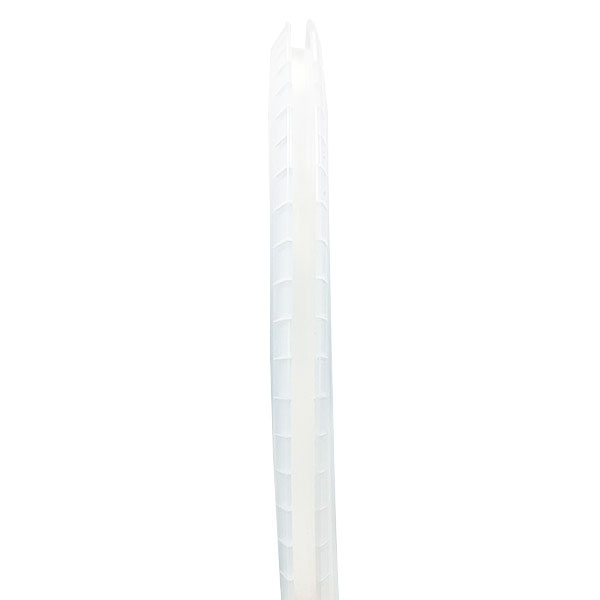

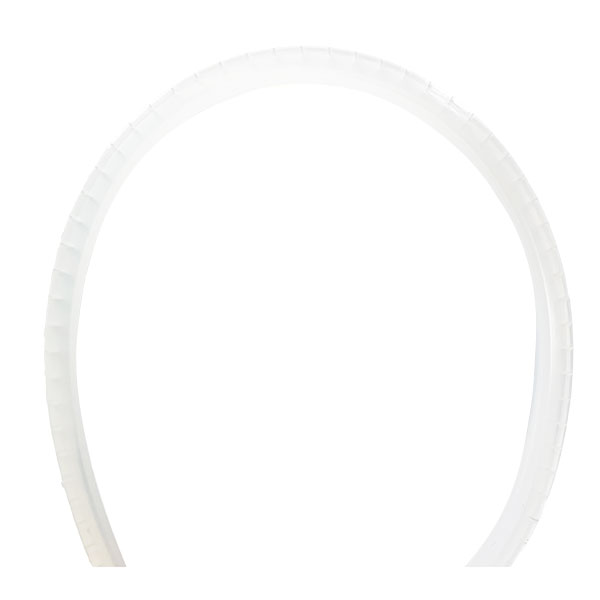

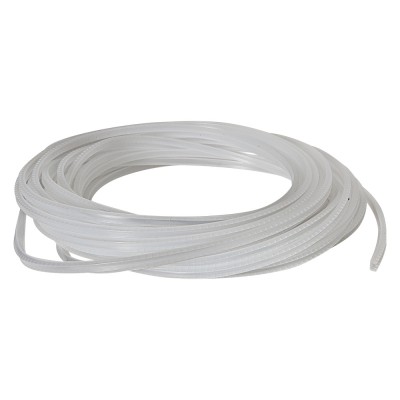

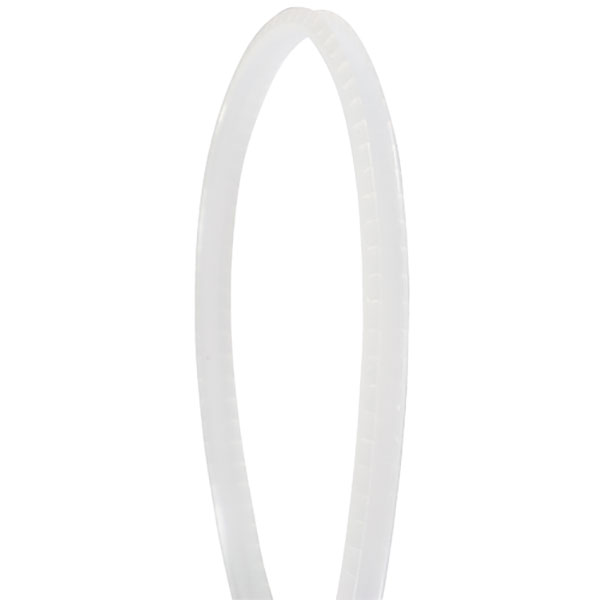

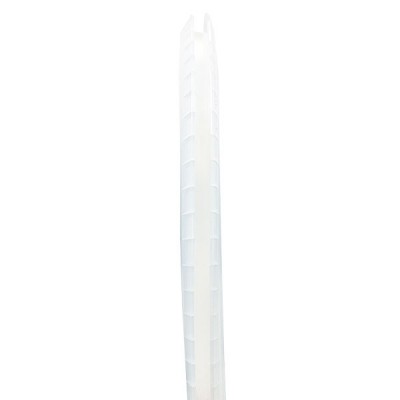

Serrated Polyethylene Gromstrip - Natural - Per 100 Ft Roll
Select Panel Thickness:
0 - 0.036 inch0.037 - 0.071 inch0.106 - 0.164 inch0.165 - 0.187 inch0.188 - 0.250 inchOverview
| Gromstrip is a continuous length of extruded U-channel for use as a protective covering on sharp edges. It can be cut to desired length and inserted into any hole, regardless of configuration. Gromstrip requires minimum space, grips surfaces snugly, and wont jar loose. Wherever wires pass through a metal piece, Gromstrip used on the sharp edges will protect against fraying and cutthrough of the wires. |
Features
- Protects wires from sharp edges
- Simply to install
- Cut to desired length
Specifications
0-0.036 Inch Panel Thickness- Width (dimension A): 0.031 in (0.79 mm)
- Depth (dimension D): 0.125 in (3.18 mm)
- Edge Thickness (dimension E): 0.031 in (0.79 mm)
- Panel Thickness: Up to 0.036 in (0.91 mm)
- Width (dimension A): 0.109 in (2.77 mm)
- Depth (dimension D): 0.172 in (4.37 mm)
- Edge Thickness (dimension E): 0.031 in (0.79 mm)
- Panel Thickness: 0.037 0.071 in (0.94 1.80 mm)
- Width (dimension A): 0.156 in (3.96 mm)
- Depth (dimension D): 0.188 in (4.78 mm)
- Edge Thickness (dimension E): 0.047 in (1.19 mm)
- Panel Thickness: 0.106 0.164 in (2.69 4.17 mm)
- Width (dimension A): 0.188 in (4.78 mm)
- Depth (dimension D): 0.188 in (4.78 mm)
- Edge Thickness (dimension E): 0.047 in (1.19 mm)
- Panel Thickness: 0.165 0.187 in (4.19 4.75 mm)
- Width (dimension A): 0.250 in (6.35 mm)
- Depth (dimension D): 0.188 in (4.78 mm)
- Edge Thickness (dimension E): 0.047 in (1.19 mm)
- Panel Thickness: 0.188 0.250 in (4.78 6.35 mm)
Documents
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: Can you buy this by the foot, Dont need a 100ft roll?
No, we do not sell this material by the foot.
