7274-11-1 Circuit Breaker

6 Reviews 1 Answered Question
$44.95/Each
Quantity
Add to Wishlist
Part# 11-08364
MFR Model# 7274-11-1

Overview

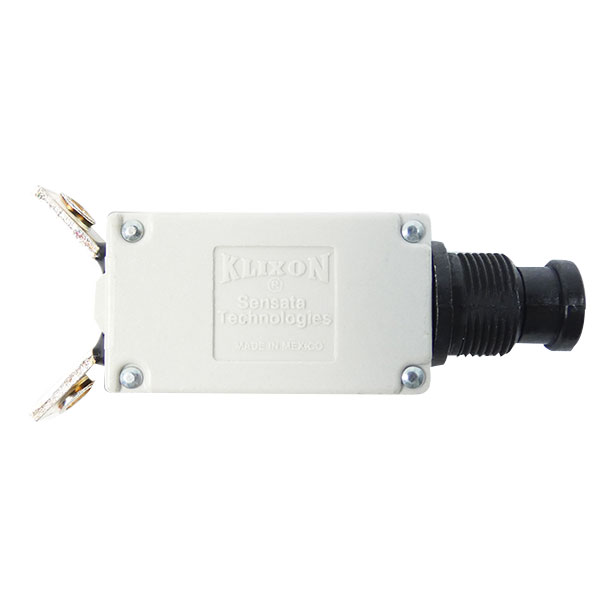

7274 series are small, lightweight, low amperage devices that are specifically designed to protect aircraft/aerospace cable and components in airborne vehicles and equipment.

Trip–Free
The 7274 features a trip–free, indicating reset button and is available in standard ratings from ˝ to 20 amps.

Wiping Action
A "wiping action" contact design assures low voltage drop, faster trip time and high reliability in low voltage applications. They are available in standard ratings from ˝ to 20 amps.

Water Resistant Panel
A water resistant panel seal designed to fit over the push button actuator is available for applications that require this type of protection. [Part #14500-1 fits 7274-11 and others with 15/32" (1.19 cm) mounting brushing. Part #14500-5 fits 7274-2 (7/16 bushing).]


Features

  • Uses minimum space
  • Light weight
  • Trip–free
  • MIL-C-5809 qualified
  • Current rating: 1 amp
  • Low amp
  • High vibration resistance
  • Options: Long push button, dust boot (part #14500-1 fits 15/32 bushing, part #14500-5 fits 7/16 bushing), auxiliary switch, waterproof panel seal
  • Typical use: Military airborne vehicle and equipment protection

Specifications

  • Vibration: 10G minimum, 50–500 Hz (other vibration levels available)
  • Amp: 1 amp
  • Mechanical Shock: 35G
  • Acceleration: 10G
  • Weight: 7274-2 (MS 26574): 28 grams maximum;7274-4 (MS 26574 A): 28 grams maximum;7274-11 (MS 22073): 33 grams maximum;7274-69 (MS 22073V): 33 grams;7274-70 (MS 26474L): 33 grams
  • Interrupt Current: 0.50–5 amps: unlimited at 28 VDC;7.50–15 amps: 2,000 amps at 28 VDC;0.50–1.50 amps: unlimited at 120 VAC, 400 Hz; 2–5 amps: 800 amps at 120 VAC, 400 Hz;7.50–20 amps: 500 amps at 120 VAC, 400 Hz
  • Endurance: 2,500 cycles: 120 VAC, 400 Hz inductive;5,000 cycles: 120 VAC, 400 Hz resistive;2,500 cycles: 30 VDC inductive; 5,000 cycles: 30 VDC resistive; 10,000 cycles: Mechanical, no load
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Doug P Verified Purchase

Circuit Breaker 7274-11-1
January 2, 2023

Rick R Verified Purchase

Circuit Breaker 7274-11-1
October 12, 2022

It’s what I ordered

Rich
April 12, 2021

Nice little circuit breaker

Robert M
February 22, 2020

Have always had good luck with these circuit breakers.

Bob C
December 5, 2019

Nice product, I already have 2 of these installed.

Ted G Verified Purchase

Circuit Breaker 7274-11-1
October 5, 2021

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does Klixon make a 50amp breaker in a 7274-11-XXX style?

Per the manufacturer, they do not produce 7274 series circuit breaker at 50 amps.
