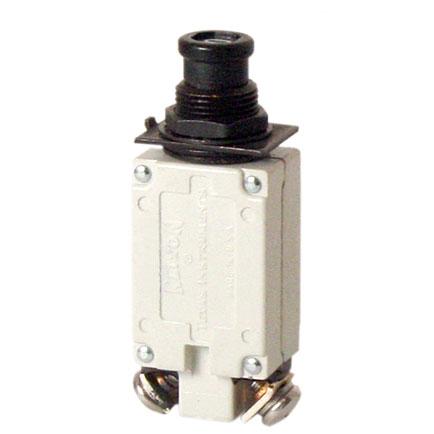

- Photo may represent series and not specific product
- SHARE
7274-2-.5 Circuit Breakers
MFR Model# 7274-2-1/2
Overview
|
7274 series are small, lightweight, low amperage devices that are specifically designed to protect aircraft/aerospace cable and components in airborne vehicles and equipment. |
Features
- Uses minimum space
- Light weight
- Trip–free
- MIL-C-5809 qualified
- Current rating: 1/2 amp
- Low amp
- High vibration resistance
- Typical use: Military airborne vehicle and equipment protection
Specifications
| Actuator Function: | Trip-reset |
|---|---|
| Actuator Position Designation: | At pole one |
| Body Length: | 0.780 inches |
| Body Style: | Single pole type |
| Body Width: | 0.580 inches |
| Bushing Length: | 0.359 inches |
| Case Material: | Metal |
| Center To Center Distance Between Terminals Parallel To Length: | 0.593 inches |
| Circuit Protection Type: | Overcurrent single location |
| Fragility Factor: | Moderately rugged |
| Frequency In Hertz: | 400.0 single location |
| Inclosure Protection Type For Which Designed: | Explosion resistant and moisture resistant |
| Internal Trip Release Configuration: | Series trip single location |
| Main Contact Tripping Mechanism Type: | Trip free |
| Manual Actuator Type And Quantity: | 1 push-pull |
| Maximum Continuous Load Current Rating Per Pole: | 5.0 amperes ac single location and 5.0 amperes dc single location |
| Mounting Facility Type And Quantity: | 1 threaded bushing w/panel seal |
| Mounting Surface To Terminal End Distance: | 1.420 inches |
| Thread Size: | 0.438 inches |
