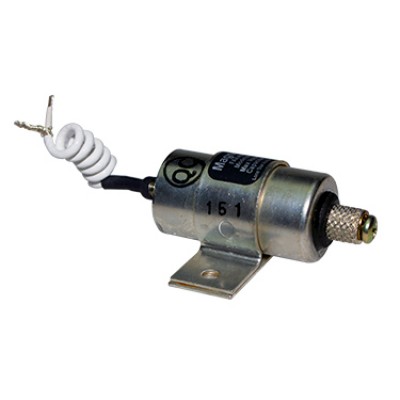

Magneto Filter - FAA / PMA Approved

14 Reviews 6 Answered Questions
$152.95/Each
Quantity
Add to Wishlist
Part# 07-00713
MFR Model# LS03-01010

Overview

Lone Star Aviation’s Magneto filter (FEED THRU) (Fail Safe Design) attenuates both low and high frequencies of noise generated from bendix magneto ignition systems. The firing of the aircraft spark plugs through the ignition systems harness can cause noise problems and interference to aircraft electronics such as audio panels, radio equipment, navigation equipment, instrumentation, and autopilot systems on board an aircraft. This filter has been used by avionics shops, OEM aircraft manufacturers, and FBO’s, to attenuate and suppress pulsating noise generated by their aircraft’s magneto systems. The magneto filter is FAA-PMA approved and is compatible with the bendix series S20, S21, S200, D3000, D4000 magneto.

Features

  • 1000 VDC working voltage, 5000VDC break down voltage
  • Capacitance: .05 uf-self healing technology
  • Braided cable is shielded, silver plate over copper, supplied in 8 inch lengths.
  • Heavy duty mounting clamp
  • Advanced feed through design
  • Temp. range: -35°C to +80°C
  • Max. current: 20 amps

Documents

Reviews

Submit a Review

Perfect an fast.

Owen W Verified Purchase

Lonestar Magneto Filter FAA/PMA Apprvd
November 29, 2024

I have not flown the airplane since the capacitors were installed. Check back with me in a couple of weeks.

William E Verified Purchase

Lonestar Magneto Filter FAA/PMA Apprvd
December 12, 2023

Michael B Verified Purchase

Lonestar Magneto Filter FAA/PMA Apprvd
July 2, 2023

Outer grounding wire sheath is to small for bendix mags.may be fine for newer style mags

Wilhelm P Verified Purchase

Lonestar Magneto Filter FAA/PMA Apprvd
March 4, 2022

Nice product

Aeropro Verified Purchase

Lonestar Magneto Filter FAA/PMA Apprvd
February 21, 2022

Ok

Thomas W Verified Purchase

Lonestar Magneto Filter FAA/PMA Apprvd
July 29, 2021

Keep up the good work.

Gary
December 8, 2020

i got it

George S
October 16, 2020

Needed for my Bendix mags. Very good quality

John W
September 12, 2020

Had engine noise in my radios very badly adding this to my mags totally eliminated the noise couldn’t be happier

Bobby B
January 9, 2020

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is there a wiring diagram available for this filter?

We have added the wiring diagram to the "Documents" tab of the web page. Please review it there.

Q: Can this Magneto Filter be used with Slick Mags?

Per the supplier: The Magneto Filter is not designed for use with Slick Mags. Our Magneto Filters are only eligible on select Bendix mags (S20, S21, S200, D2000 and D3000). If your customer is picking up audible noise in his headsets, I might recommend using our Eliminator Filter (Part # 11-08055), in line on the power to the radio.

Q: Do I need one magneto filter for each mag?

Yes. You will need one filter per mag.

Q: Does this magneto filter come with a contact end and the needed terminals to transfer the attachment nut and spacers?

This unit has a pigtail with a connecting terminal, and a screw with a knurled nut, as pictured.

Q: Do I get 2 for each engine, one for each magneto or only one for one of the magnetos? I see with my twin there was only one per engine, not on both mags.

You would use one per magneto.

Q: Can i use this to my 10-349310-1: Bendix Magneto S6LN-1209.? Because i experiencing radio/interference noise when the engine is running and when i turn off the right magneto the interference noise is gone.

Yes, it could be used for that application.
