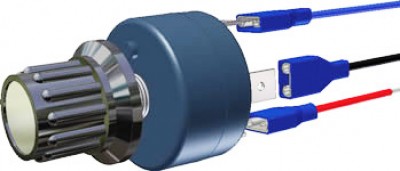

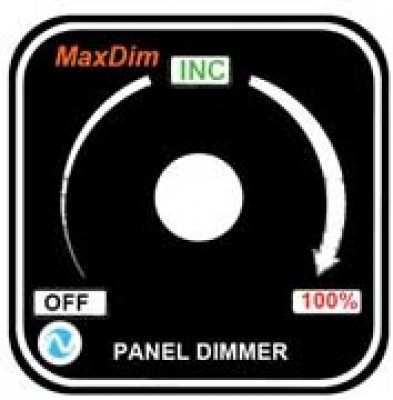

Maxdim Dimmer Controller Model - A
MFR Model# 9100-001-A
Overview
|

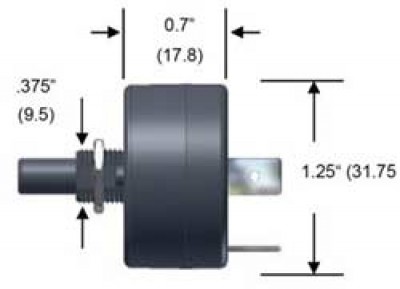

5-35 VDC 0-12.5A Control 350 Watts in a 1-1/4" Diameter package. Complete compact, light weight, powerful, solid state dimmer. Great for light wedges. FAA STC Approved. PMA'd Download the Dimmer Brochure in PDF
|
Features
- Aircraft Lighting
- You can comply to Cessna AD 93-24-15 about cockpit fires
- Excellent control of Nulite instrument lighting
- Excellent LED control
- DC blower motors
- Small DC motors
- STC, PMA, RTCA/DO-160E SEC 21: RFE Qualified
- Instrument Panels
- Boat Cruiser Cabins
- LED lit panels
- Hundreds of DC Lighting Control applications
- Assembled in the USA
Specifications
- Voltage Range: 5VDC to 35VDC
- Max Current: 12.5 A
- Controlled Output: 0 to 5-35 VDC 0 to 12.5 A
- Capacity:
- 60 Watts @5 VDC
- 150 Watts @12 VDC
- 288 Watts @24 VDC
- 350 Watts @28 VDC
- 440 Watts @35 VDC
- Install with Standard Supplied solderless Crimp Connectors
- Potentiometer Rotation: 270° Rotational Life: 500K Turns
- Operating Temperature Range: -20° C to +50° C
- Internal temperature Protect: +85° C
- Storage Temperature: -40° C to +100° C
- Maximum Internal Temperature: @12.5A +15° C
- Enclosure Material: Bayer FR 110 Resin Meets UL 94
- Flame Rating: V-2 (0.03in) V-0 (0.059in) 5VB (0.098in) 5VA (0.13in)
- STC & PMA approved.
- Conforms to RTCA/DO-160E SEC 21: RFE (EMI)
- One Year limited warranty
- Weight: 0.58 oz (16.6g)
- What's in the box?MaxDim unit, installation instructions, color coded terminals,reference panel label, STC printout for your logs, installation template, and knob.
