Overview

Features

• Supplies 1200 watts of power to multiple cabin accessories, galley equipment and entertainment systems
• Ideal for use in special mission and VIP cabin configurations.
• Compact design — 30% smaller than competing products
• Lightweight — 7.3 lbs
• 88% efficiency
• Input transient, overload and short-circuit protection — up to 150% of rated load without damage
• Remote On/Off optional
• FAA TSO-C73 certified
• EASA ETSO-C73 certified
• RTCA DO-160G qualified
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty

Specifications

• Input Voltage: 20 – 36 VDC
• Input Current: 60A at 28 VDC input
• Output Voltage: 240 VAC ± 3%
• Output Power: 1200 VA
• Output Frequency: 50 Hz ± 0.1%
• Output Waveform: Single phase, true sine wave, < 3% total harmonic distortion
• Weight: 7.3 lbs (3.31 kg)
• Altitude: 55,000 ft
• Humidity: Tested to greater than 95% for 10 days, temperature cycle of 75° F to 160° F
• Temperature: -67° F to +158° F (-55° C to +70° C)
• Integral Cooling: Dual, electronically-controlled brushless fans
• Mating Connector: 9017235-1 (connector)
• 9017235-2 (cable clamp)

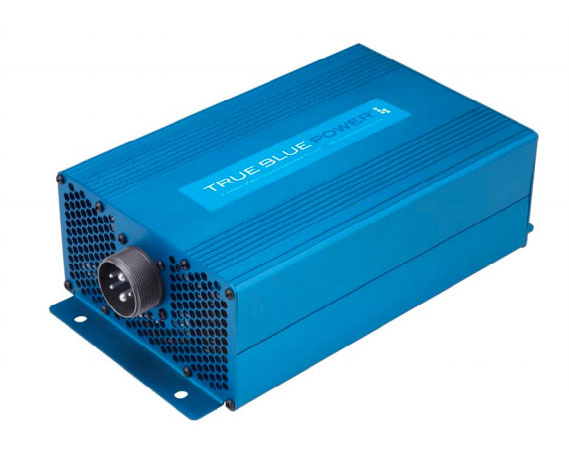

• Case: Anodized aluminum extrusion, blue
• Certification: FAA TSO-C73 certified
• EASA ETSO-C73 certified
• RTCA DO-160G qualified

Documents

• Installation Manual
• Technical Drawing
