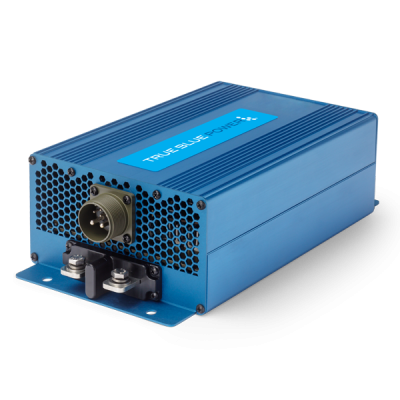

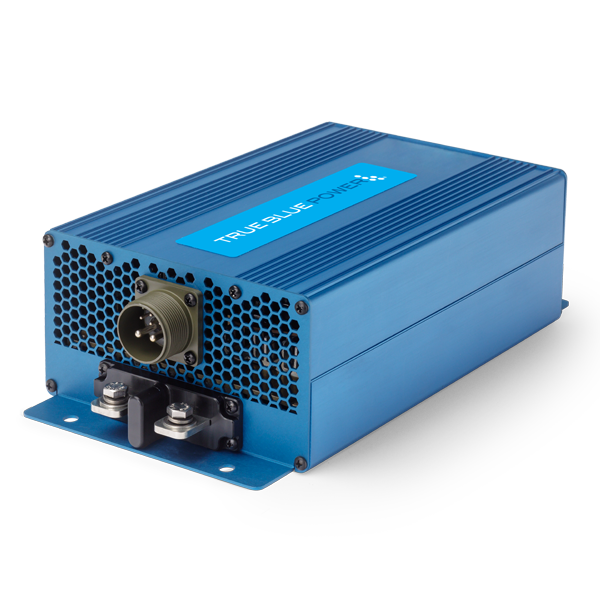

True Blue Power DC-to-DC Voltage Converter

0 Reviews 0 Answered Questions
$21480.00/Each
Quantity
Add to Wishlist
Part# 10-07756
MFR Model# 6436500-1

Overview

The high voltage TC6500 converts 270 VDC to 28 VDC to power avionics and related systems. The DC-to-DC converter is compact, lightweight and easy to install inside or outside of the pressure vessel. It has 96% peak efficiency and features an overload capacity up to 110% of rated power without damage.

Features

  • High Voltage. High Efficiency. Low Weight.
  • 6,500 watts output power
  • 28.7 VDC ± 0.4 VDC output voltage
  • 96% efficiency
  • Remote control
  • Three brushless, temperature-controlled and speed-controlled fans; Thermostatic On/Off control
  • Up to 110% of rated power without damage overload capacity
  • Input transient, temperature monitoring, short circuit and over current protection
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty

Specifications

  • Input Voltage: 165 – 320 VDC
  • Input Current: 26 A Nominal
  • Output Voltage: 28.7 VDC ± 0.4 VDC
  • Output Power: 6,500 watts
  • Weight: 10.4 lbs (4.7 kg)
  • Dimensions: 6.3”W x 12.0”L x 3.5”H
  • Altitude: 55,000 feet
  • Temperature: -67°F to +158°F (-55°C to +70°C)
  • Mating Connector: 9019803-8, 9019803-9
  • Case: Anodized aluminum extrusion, blue
  • Certification: FAA TSO-C71 pending
  • RTCA DO-160G pending
