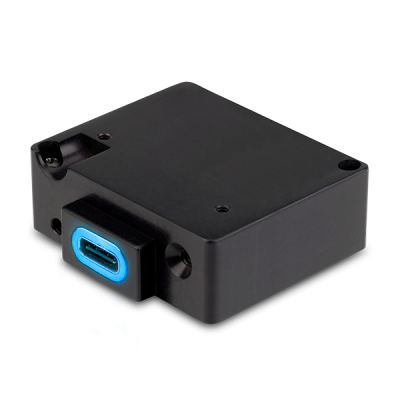

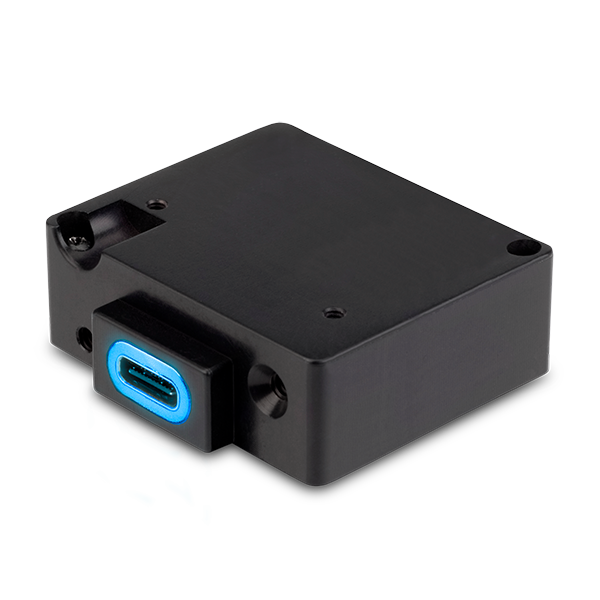

True Blue Power Single USB Charging Ports TA245 FAA-TSO
From $429.00 to $463.00
Overview
|
Charge your personal electronic devices faster with TA245 Series USB Chargers. The TA245 is compatible with any aircraft running 14-volt and 28-volt systems. It delivers 45 watts to phones, tablets, EFBs and laptops.
The TA245 Series features USB Power Delivery (PD) and ultra-fast charging Programmable Power Supply (PPS) technology. PPS functionality allows the charger to dynamically adjust voltage in small increments, optimizing power delivery based on the device’s specific needs. This ensures a faster, more efficient charge and extends device battery life. True Blue Power offers more than 30 USB configurations and mounting options for easy in-seat, cabin, cockpit and galley installation. The ultra compact TA245 is a direct replacement for any True Blue Power chargers. They feature adjustable halo ring lighting, and optional faceplates and adapter plates are available. |
Features
| OUTPUT POWER | USB-C 45 W max per port USB-A 36 W max per port |
|---|---|
| OUTPUT VOLTAGE | USB-C 3.3 – 20 VDC @ up to 3.0 A per port USB-A 3.6 – 12 VDC @ 3.0 A per port |
| OUTPUT CURRENT | 3.0 amps per port |
| INPUT VOLTAGE | 12 – 32 VDC |
| USB CONNECTOR | USB-A and USB-C Single and dual configurations |
| CHARGING TECHNOLOGY | USB-C: Power Delivery3.0 Programmable Power Supply 3.0 Battery Charging 1.2 |
| USB-A: Qualcomm® Quick Charge™ 3.0 Battery Charging 1.2 | |
| USB LIGHTING | Manual lighting control Colored status indications: power, charging, fault |
| EFFICIENCY | Charge one or two devices simultaneously at full power |
| PROTECTION | Short circuit, power surge, overload and over temperature |
| APPLICATIONS | In-seat, cabin, cockpit and galley |
| DESIGNED AND MANUFACTURED | Wichita, Kansas, USA |
| WARRANTY | Limited Lifetime Warranty |
Specifications
| OUTPUT POWER | USB-C 45 W max per port USB-A 36 W max per port |
|---|---|
| OUTPUT VOLTAGE | USB-C 3.3 – 20 VDC @ up to 3.0 A per port USB-A 3.6 – 12 VDC @ 3.0 A per port |
| OUTPUT CURRENT | 3.0 amps per port |
| INPUT POWER | 52 W max per port |
| INPUT VOLTAGE | 12 – 32 VDC |
| USB CONNECTOR | USB-A and USB-C Single and dual configurations |
| WEIGHT | Single 0.9 ounces (26 grams) Dual 1.8 ounces (52 grams) |
| DIMENSIONS | Single 1.5” W x 0.52” H x 1.25” D Dual 1.5” W x 1.03” H x 1.25” D |
| MATING MCI CONNECTOR KIT | MCI P/N 9017960 (included) |
| MOUNTING | Front or rear; faceplates and adapter plates (optional) |
| INSTALLATION | In-seat, cabin, cockpit and galley |
| CASE | Anodized aluminum, black |
| CERTIFICATION | FAA TSO C71 pending EASA ETSO C71 pending RTCA DO-160G pending |
