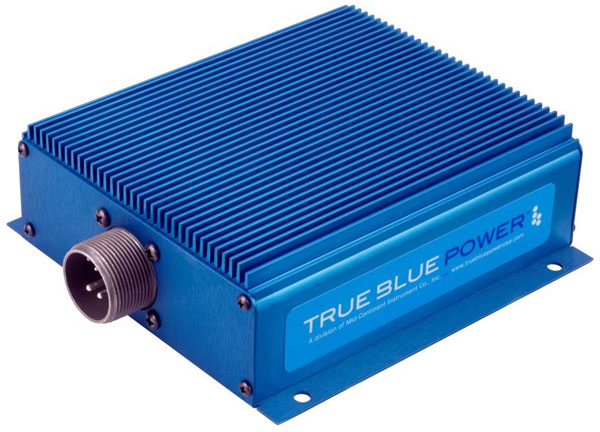

True Blue Power DC To AC Static Inverter 250 Watts - 115/26 Vac
$5502.00/Each
Part# 11-14267
MFR Model# 6430250-3
MFR Model# 6430250-3
Overview
| The highly-efficient TI250 Series DC-to-AC Inverter produces 250 watts of power from the aircraft’s 28 VDC input. Engineered to run cooler and featuring a fanless design, the TI250 Series saves energy and reduces weight. At only 2.2 pounds, these inverters are lighter and smaller than competing units and include overload, short-circuit and ground fault interrupter protection. |
Features
- Supplies 250 watts of power to multiple cabin accessories
- Compact design — lighter and smaller than competing inverters
- Lightweight — 2.6 lbs
- Remote On/Off feature
- 250 VA output power
- 87 – 90% efficiency
- Input Voltage: 20 – 36 VDC
- Input Current: 10A at 28 VDC input
- Output Voltage: 115/26 VAC ± 3%
- Frequency: 400 Hz ± 0.1 Hz
- Single phase, true sine wave output
- Input transient, overload, and short-circuit protection up to 150% of rated load without damage
- Rated from –65°F to +160°F (-55°C to +70°C)
- FAA TSO-C73 certified and RTCA DO-160G qualified
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Specifications
- Input Voltage: 20 – 36 VDC
- Input Current: 10A at 28 VDC input
- Output Voltage: 115/26 VAC ± 3%
- Output Power: 250 VA
- Output Waveform: Single phase, true sine wave, < 3% total harmonic distortion
- Output Frequency: 400 Hz ± 0.1 Hz
- Efficiency: 87 – 90%
- Power Conversion Method: Current mode control
- Weight: 2.6 lbs
- Altitude: 55,000 ft
- Humidity: Tested to greater than 95% for 10 days, temperature cycle of 100°F to 150°F
- Temperature: -65°F to +160°F (-55°C to +70°C)
- Protection: Input transient, overload, short-circuit protection (up to 150% of rated load without damage) Ground fault interrupter (GFI) protection
- Mating Connector: MS3106A-18-9S (MCI P/N 9016905-1, -2)
- Case: Anodized aluminum extrusion, blue
- Certification: FAA TSO-C73 certified and RTCA DO-160G qualified
