NavStrobe Aircraft Navigation System With Constant And Fast Strobe - 10W

$214.95/Each
Quantity
Add to Wishlist
Part# 11-16470
MFR Model# 10W

Overview

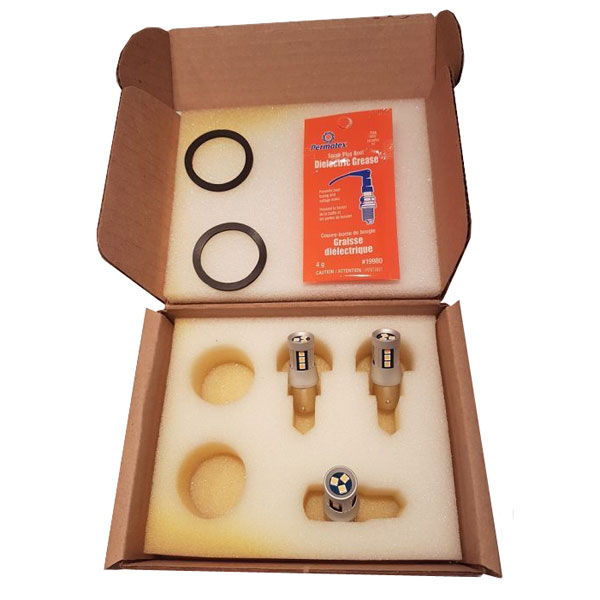

2ea. Wingtip combination navigation and strobe light (BAY15scs-10w-A-1512) - P/N: 11-16654
1ea. White tailfin combination navigation and strobe light (BA15sWcs-10w-1156) - P/N: 11-16666
2ea. Lens cover gaskets (Sextant A450)
1ea. Dielectric grease pouch (Sextant 31880)

Specifications

  • Rated Voltage: 10-28VDC
  • Draws: 732ma @ 14.2VDC
  • 2 modes: Constant & fast strobe
  • Base Type: BAY15s for wingtip & BA15s for tailfin
  • Application: Navigation Light replacement.

    Operation: Turn on first; Constant lighting / Turn on second time; <3s: Fast Strobe. Switch between modes in fog/cloud etc. The reset mode sets them back to constant on by removing the power for > 30 seconds. Handy after fuel up to start again in steady on mode.
    • Frequently Purchased With
    • Customers Also Viewed
    • Related Items

    Reviews

    A solid upgrade from the vintage original nav bulbs, a true plug and play replacement with the added benefit of pulsing function. I can’t imagine what the 40 watt versions.

    Dr. V
    October 4, 2019

    Q&A

    Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

    Q: Is this light FAA TSO Approved?

    No, it does not hold specific FAA TSO approval.

    Q: Do these Navstrobe 10W lights go behind my red and green lenses, or do I need to also buy clear lenses?

    The 10w product (PART # 11-16654) is designed to be used with the existing colored lens.

    Q: I have the system, but my red bulb burned out or stopped flashing, can I purchase a replacement bulb for it? Thanks.

    If you have the 10W kit, you would use part number 11-16654 for the replacement bulb.
