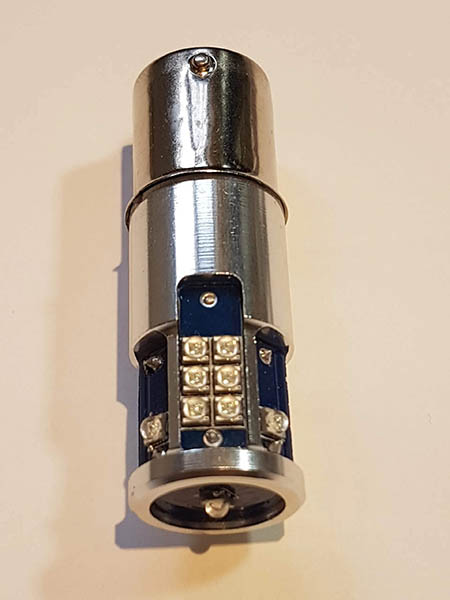

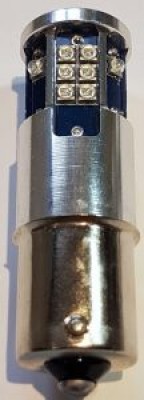

NavStrobe Wingtip Navigation Light with Constant & Fast Strobe 45w FAA-TSO
Overview
|
These bulbs are standard parts and are certified to be FAA TSO-C30c Approved. Emitter Type: Green Cree LED’s Turn on first: Constant lighting / Turn on second time <3s: Fast Strobe. Switch between modes in fog/cloud etc. Note: This product must be used in conjunction with Aircraft Wingtip Navigation Light Clear Lens Cover ( Sextant A-1233A-1) to be compliant. |
Specifications
- Power: 45W Equivalent
- Color BIN: Aviation Green (520-535nm)
- Rated Voltage: 10-30VDC
- Draws <460ma @ 14.2VDC
- Luminous Flux: 1150LM/91.7cdl (0/0 degrees) 225.7LM/18.1cdl (+/-90 degrees),
- 2 modes: constant & fast strobe
- Base Type: BAY15s = Single contact and offset pin. (A-1512)
- Application: Wingtip Navigation Light replacement.
- Contains 1 light bulb per pack.
- Dimensions: 2.0 in x 0.7 in (52mm x 1.8cm).
- Weight: 0.32 oz (9 g)
Dimensional Drawing
Documents
Videos
Reviews
I ordered the green and red nav lights at EAA Air Venture. They were delivered quickly, but the system mistakenly contained TWO red “bulbs”! After a call to Aircraft Spruce service department, they sent me a green led and a return shipping label to return one of the green leds. All went well and I’m very happy with the nav lights…bright with an optional flashing mode.
Verified Purchase
NavStrobe Wingtip Green 45 Watt
Third time was the charm, this one did not disintegrate upon installation, bright also.
Verified Purchase
NavStrobe Wingtip Red 45 Watt
Packaging was poor for a 140.00 bulb.not sure about quality control for an item thats STC
Verified Purchase
NavStrobe Wingtip Green 45 Watt
Arrived DOA, not sure if they bench test these.Packaging was poor for a 140.00 bulb. Love the concept, not sure about quality control for this as an STC item
Verified Purchase
NavStrobe Wingtip Red 45 Watt
Purchased replacement bulb for one that was damaged. New bulb failed at the base during installation. Bulb was replaced under warrant and new bulb is working well. Took off one star for the hassle and apparently common issue this is based on other comments.
Verified Purchase
NavStrobe Wingtip Green 45 Watt
Bought a set, worked quite well and easy install. One bulb was damaged due to hangar rash. Bought this replacement bulb and it separated from the base. Hopefully the replacement will work. Otherwise happy.
This is second red bulb that separated from the base on installation. Hope they get it figured out soon.
Verified Purchase
NavStrobe Wingtip Red 45 Watt
