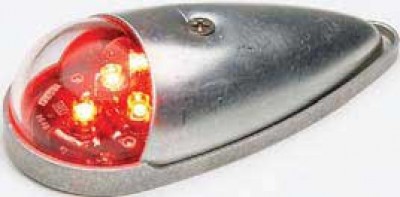

Whelen LED Position Lights - Model 71105 Series
| Model | Description | Volt | Color | Leads | PN | Price | Buy |
|---|---|---|---|---|---|---|---|
| 7110501 | LED Forward Position Light FAA/TSO-C30c Type II | 14 | Green | Std - Red/Black | 11-05629 | $585.00 | |
| 7110502 | LED Forward Position Light FAA/TSO-C30c Type I | 14 | Red | Std - Red/Black | 11-05631 | $559.00 | |
| 7110503 | LED Forward Position Light FAA/TSO-C30c Type II | 28 | Green | Std - Red/Black | 11-05632 | $559.00 | |
| 7110504 | LED Forward Position Light FAA/TSO-C30c Type I | 28 | Red | Std - Red/Black | 11-05634 | $559.00 | |
| 7110512 | LED Forward Position Light FAA/TSO-C30c Type I | 28 | Red | Shielded: White - White/Blue - Shield | 11-13983 | $1325.00 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
71105 series are fully FAA TSO compliant Forward Position lights. LED™s provide a significant reduction in electrical current draw over conventional light bulbs. Direct replacement for Whelen Model W1285 series (Version STC™d on Learjet Aircraft).
Operational: 14/28 VDC (nominal) Input Current:Voltage: 0.25 Amps EQUIPMENT LIMITATIONS: An approved forward position lighting system consists of two lights, one located on each wingtip. CONTINUED AIRWORTHINESS: The 71105 series LED wingtip position light assembly is designed with 3 LED’s. If any one LED fails, the unit must be repaired or replaced. Inspect the lens. Replace if there is excessive scratching, discoloration or cracking.
Dimensions Model Breakdown Model Specs |
Reviews
Verified Purchase
Whelen 7110501 14V Green LED Pos
Verified Purchase
Whelen 7110501 14V Green LED Pos
as advertised, and shipping was good
Verified Purchase
Whelen 7110502 14V Red LED Pos
First Red LED didnt work and was over a year old. Whelen immediately sent me another one and it worked and was very bright.
Verified Purchase
Whelen 7110502 14V Red LED Pos
Awesomely bright light. Very happy with this purchase.
Verified Purchase
Whelen 7110502 14V Red LED Pos
I love these lights. They look slick and are very bright. My A&P wished they had provided longer wires.
Verified Purchase
Whelen 7110501 14V Green LED Pos
Ordered this unit along with the other wing tip for my AA5A and while expensive, the light output is incredible. I fly routinely in busy Class B airspace and other aircraft have commented how bright these lights are (even in daylight). Highly recommend if you really want to be seen!
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, these replace the Whelen W1285 series lights, which were OEM position lights on many Cessna aircraft.
These are LEDS and should not burn out or need replacement. If you are looking for an LED bulb that would work on the similar non-led housings, you would use the Whelen Chroma series.
You should be able to but you would have to wire it and it may cause and issue with the TSO. I would recommend keeping the A650 assemblies and swapping the incandescent lamps with LED Whelen Chroma bulbs.
Part # 11-05629 is green, 14v.
There is not an insulation but it does have a wired ground.
